Single-sided milling insert ADMX 11T3, 85° parallelogram for a maximum depth of cut of .3543", with .0472" corner radius, an indexing accuracy according to ISO-tolerance class-M and MM geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50/M20-M40 and S20-S30 for machining of steel, stainless-steel and superalloy with shoulder mills SAD11E or shoulder mills with extended flute J(T)-SAD11E
- Product Name ISO: ADMX 11T312SR-MM:M8340
- Ordering Code ANSI: ADMX 11T312SR-MM:M8340
- EDP Number: 6925542
- Coating: M8340
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

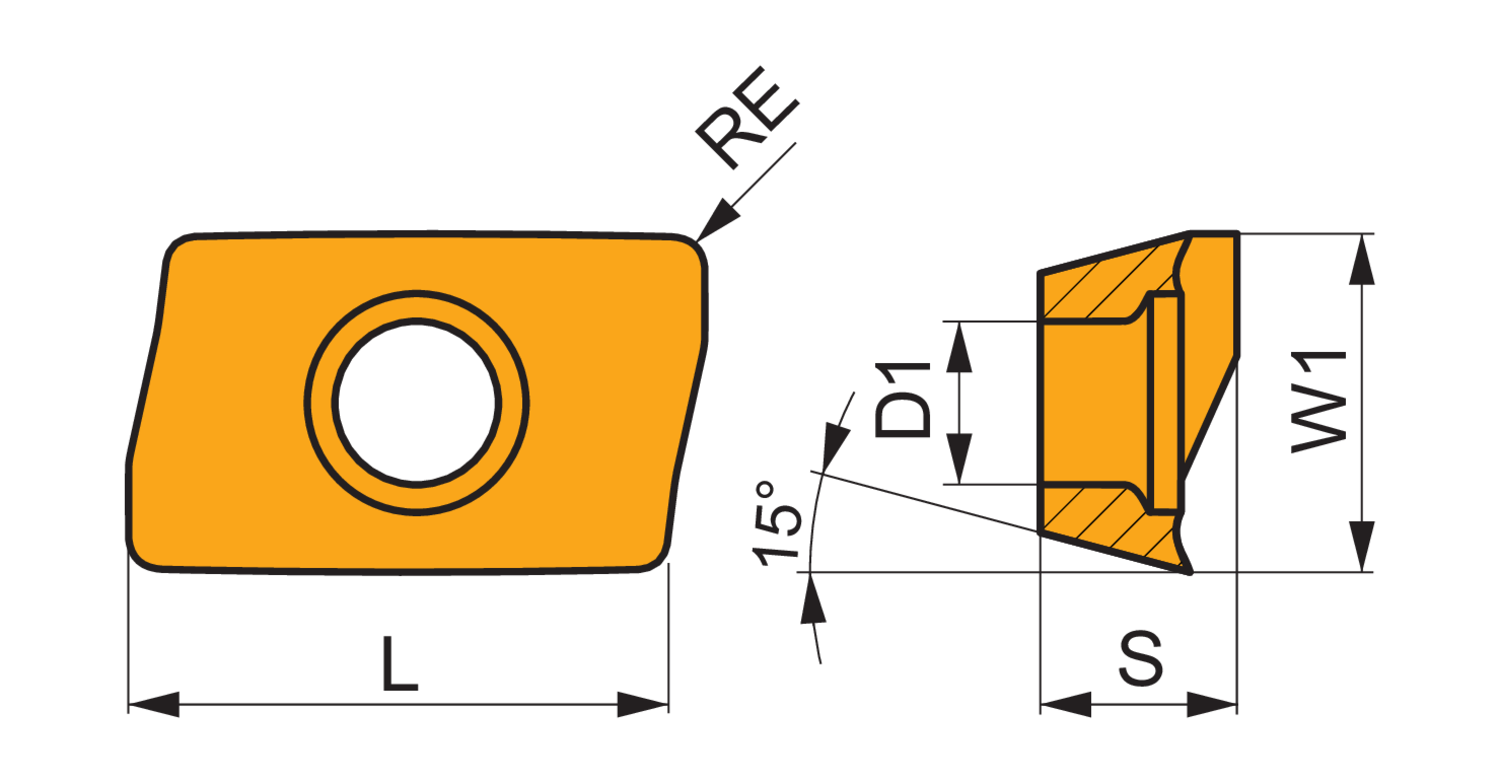

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Corner Radius (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 2.9 |
| Insert Thickness (Mm.) | 3.97 |
| Insert Width (Mm.) | 6.53 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | M8340 |
