Single-sided milling insert ADMX 1606, 85° parallelogram for a maximum depth of cut of .5118", with .0787" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with shoulder mills SAD16E or shoulder mills with extended flute J(T)-SAD16E
- Product Name ISO: ADMX 160620SR-M:M8330
- Ordering Code ANSI: ADMX 160620SR-M:M8330
- EDP Number: 7447821
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

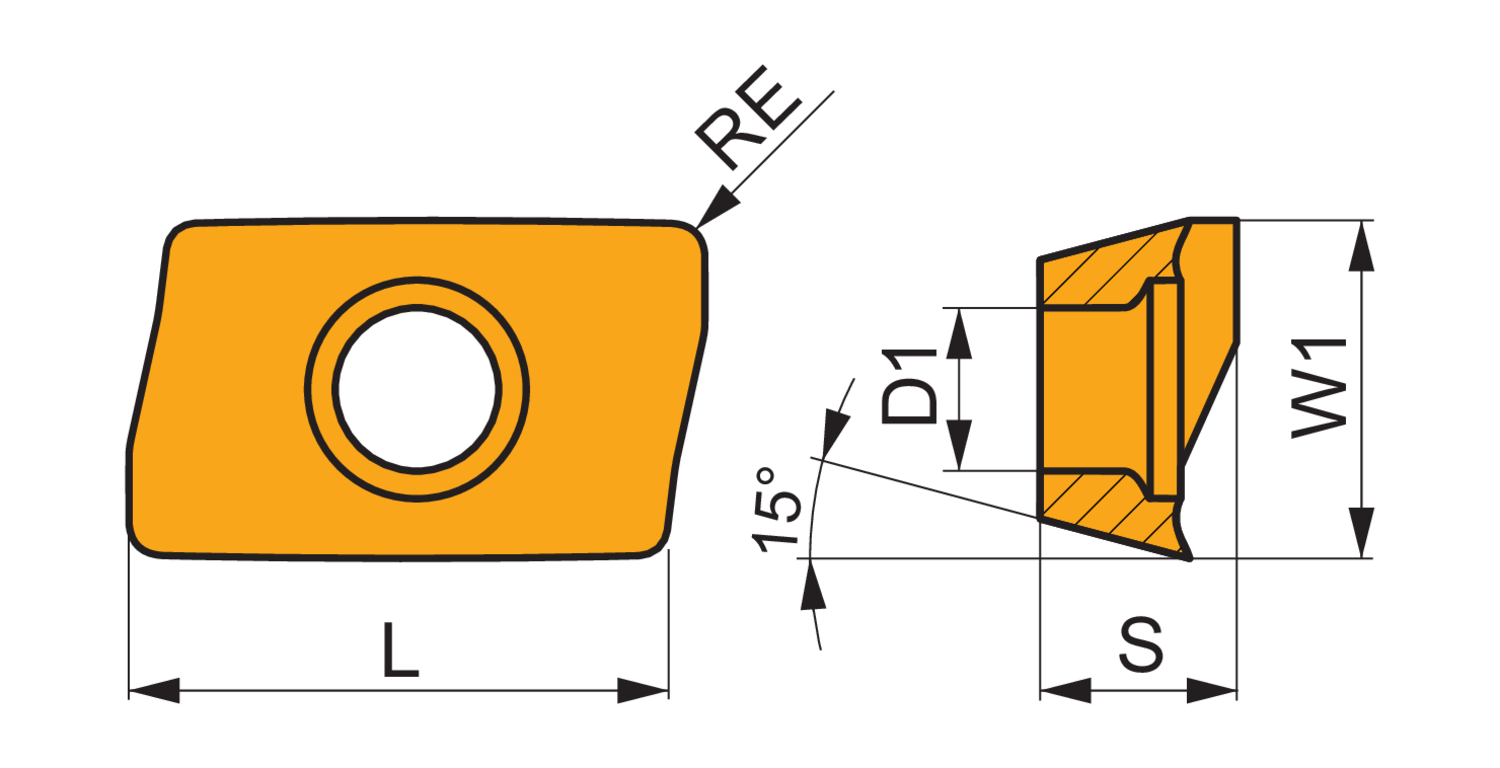

Product Measurement Standard | Metric |
Depth of Cut Maximum (Mm.) | 13 |
Corner Radius (Mm.) | 2 |
Fixing Hole Diameter (Mm.) | 4.5 |
Insert Thickness (Mm.) | 6.25 |
Insert Width (Mm.) | 9.95 |
Max Depth of Cut (In.) | 0.512 |
Coating | M8330 |
