Single-sided milling insert APKT 1003 with chip-breakers, 85° parallelogram for a maximum depth of cut of .3543", with .0197" corner radius, an indexing accuracy according to ISO-tolerance class-K and M geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with shoulder mills SAP10D
- Product Name ISO: APKT 1003PDER-M:M8330
- Ordering Code ANSI: APKT 1003PDER-M:M8330
- EDP Number: 7447830
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

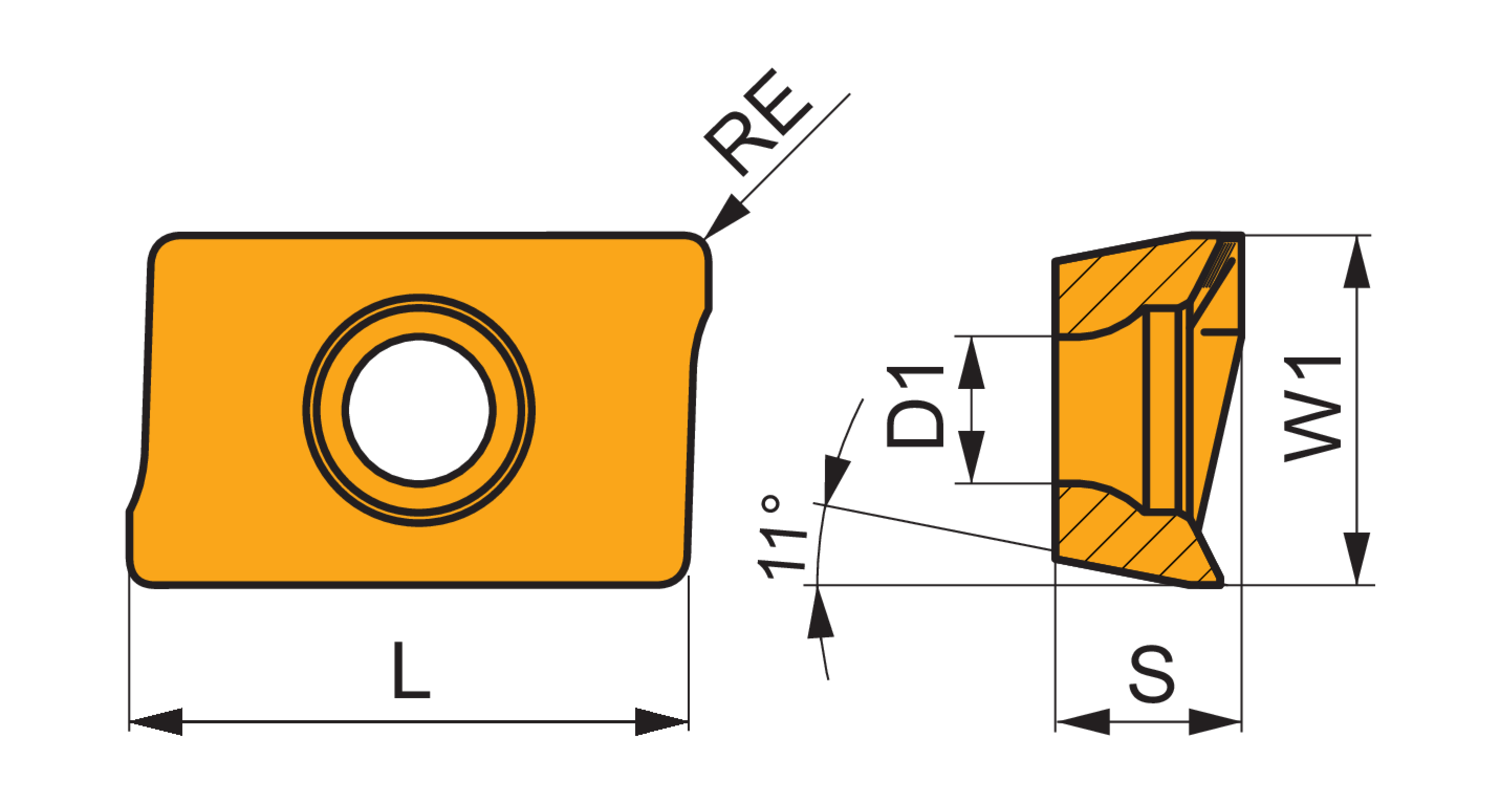

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Corner Radius (Mm.) | 0.5 |
| Fixing Hole Diameter (Mm.) | 2.88 |
| Insert Thickness (Mm.) | 3.5 |
| Insert Width (Mm.) | 6.7 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | M8330 |
