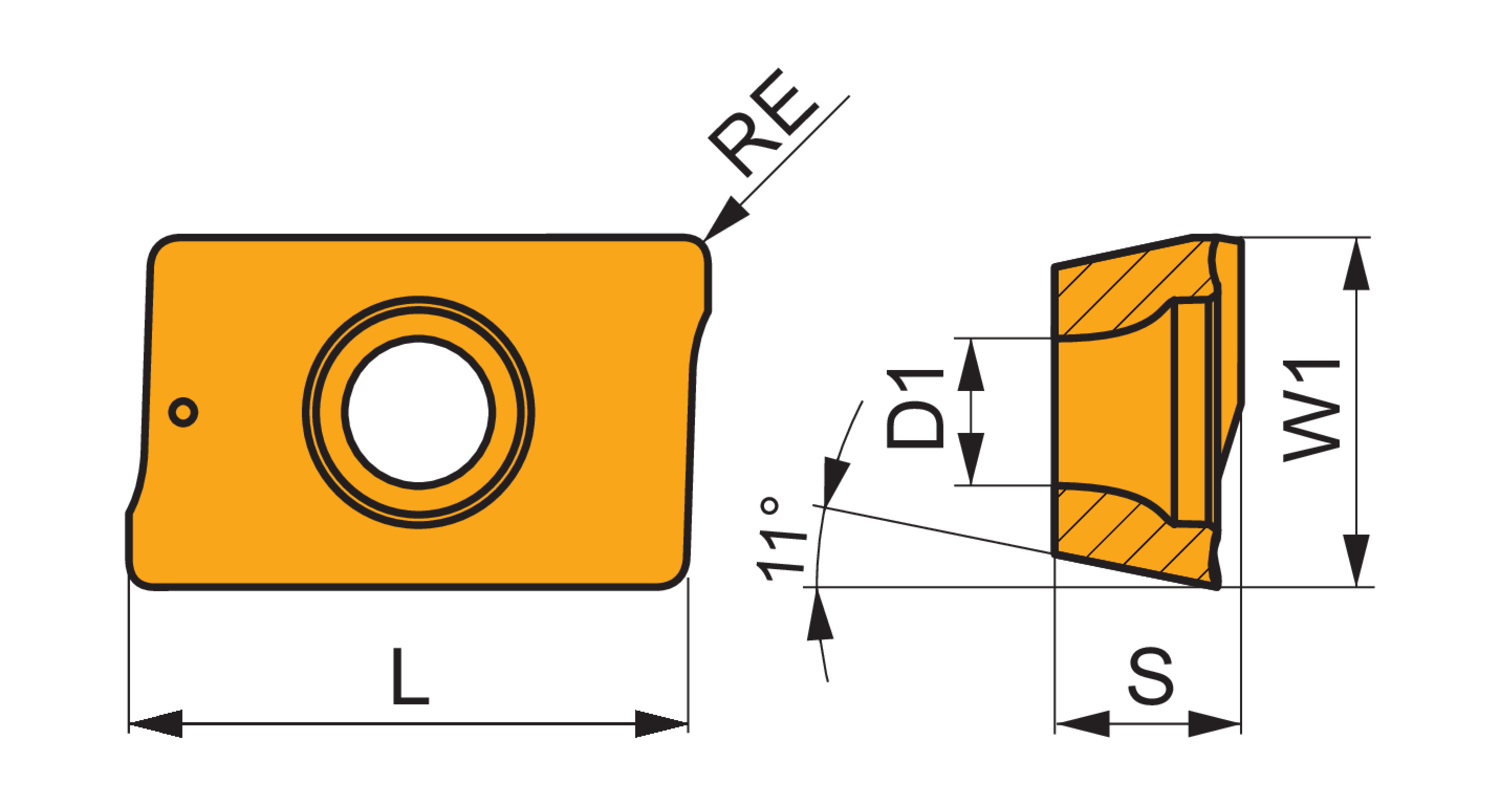

Single-sided milling insert APKT 1604 with chip-breakers, 85° parallelogram for a maximum depth of cut of .5118", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-K and GM geometry, M9340 MT-CVD coated WC-Co carbide within ISO-grade range M30-M40 for machining of stainless-steel with shoulder mills SAP16D
- Product Name ISO: APKT 1604PDR-GM:M9340
- Ordering Code ANSI: APKT 1604PDR-GM:M9340
- EDP Number: 6754633
- Coating: M9340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 13 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.6 |
| Insert Thickness (Mm.) | 5.67 |
| Insert Width (Mm.) | 9.44 |
| Max Depth of Cut (In.) | 0.512 |
| Coating | M9340 |
