Single-sided milling insert APMT 1604 with chip-breakers, 85° parallelogram for a maximum depth of cut of .5118", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and FM geometry with rounded cutting edges, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel
- Product Name ISO: APMT 1604PDER-FM:M8345
- Ordering Code ANSI: APMT 1604PDER-FM:M8345
- EDP Number: 7156043
- Coating: M8345
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

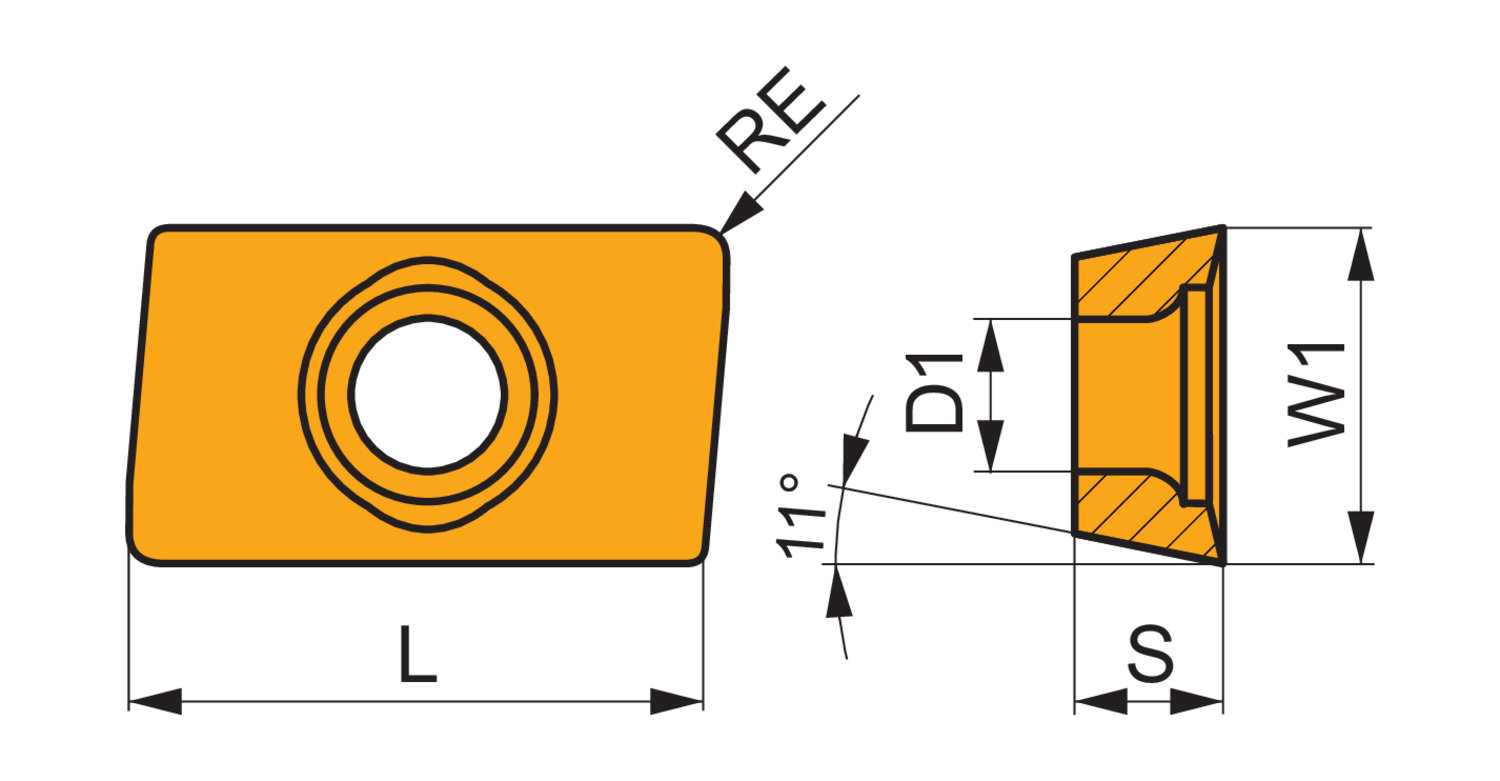

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 13 |
| Fixing Hole Diameter (Mm.) | 4.5 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Width (Mm.) | 9.6 |
| Max Depth of Cut (In.) | 0.512 |
| Coating | M8345 |
