Single-sided milling insert ODMT 0505 with chip-breakers, octagonal for a maximum depth of cut of .1181", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide for machining with copy face mills SOD05
- Product Name ISO: ODMT 050508SN-R:M9340
- Ordering Code ANSI: ODMT 050508SN-R:M9340
- EDP Number: 7342897
- Coating: M9340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

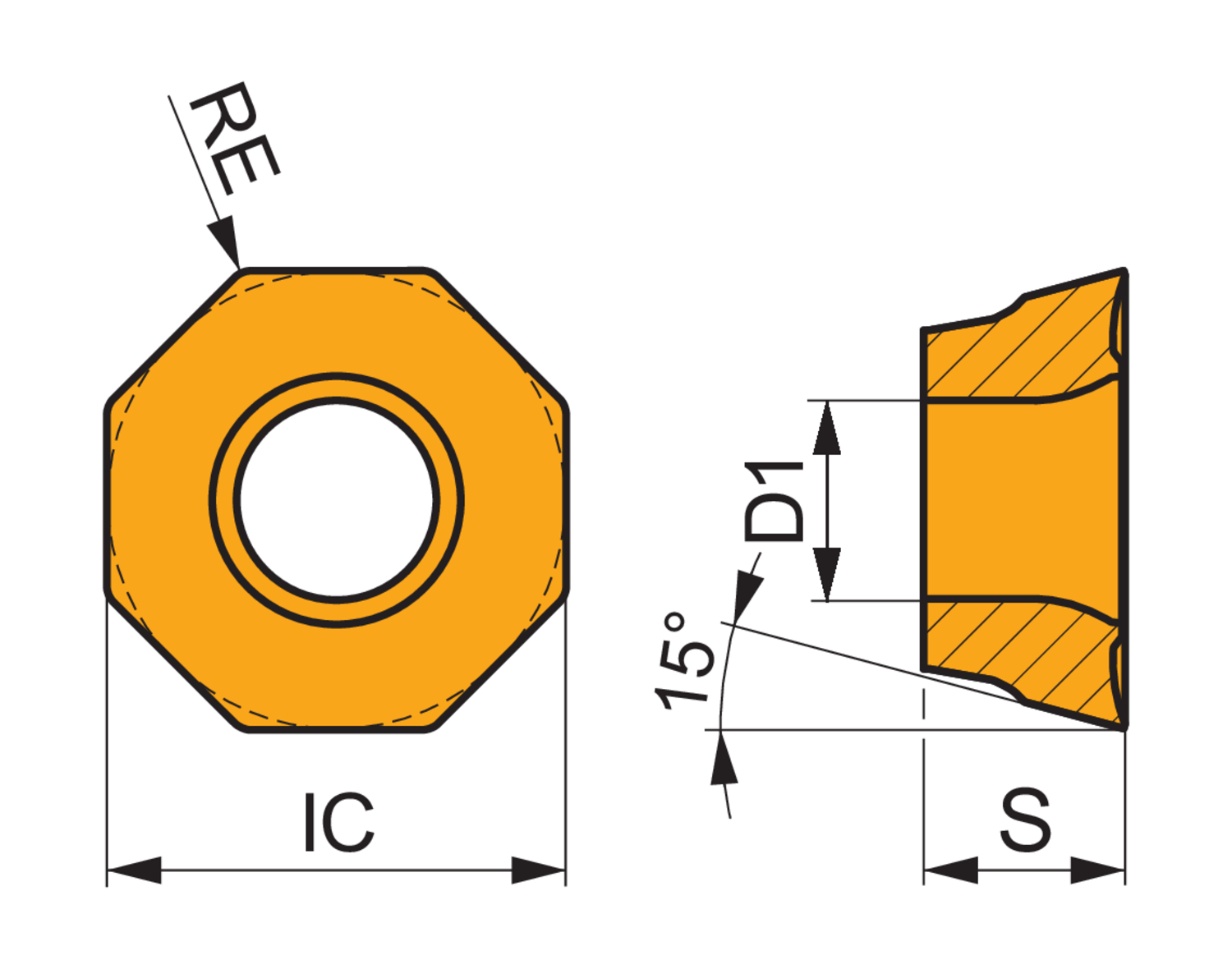

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 5.56 |
| Max Depth of Cut (In.) | 0.118 |
| Coating | M9340 |
