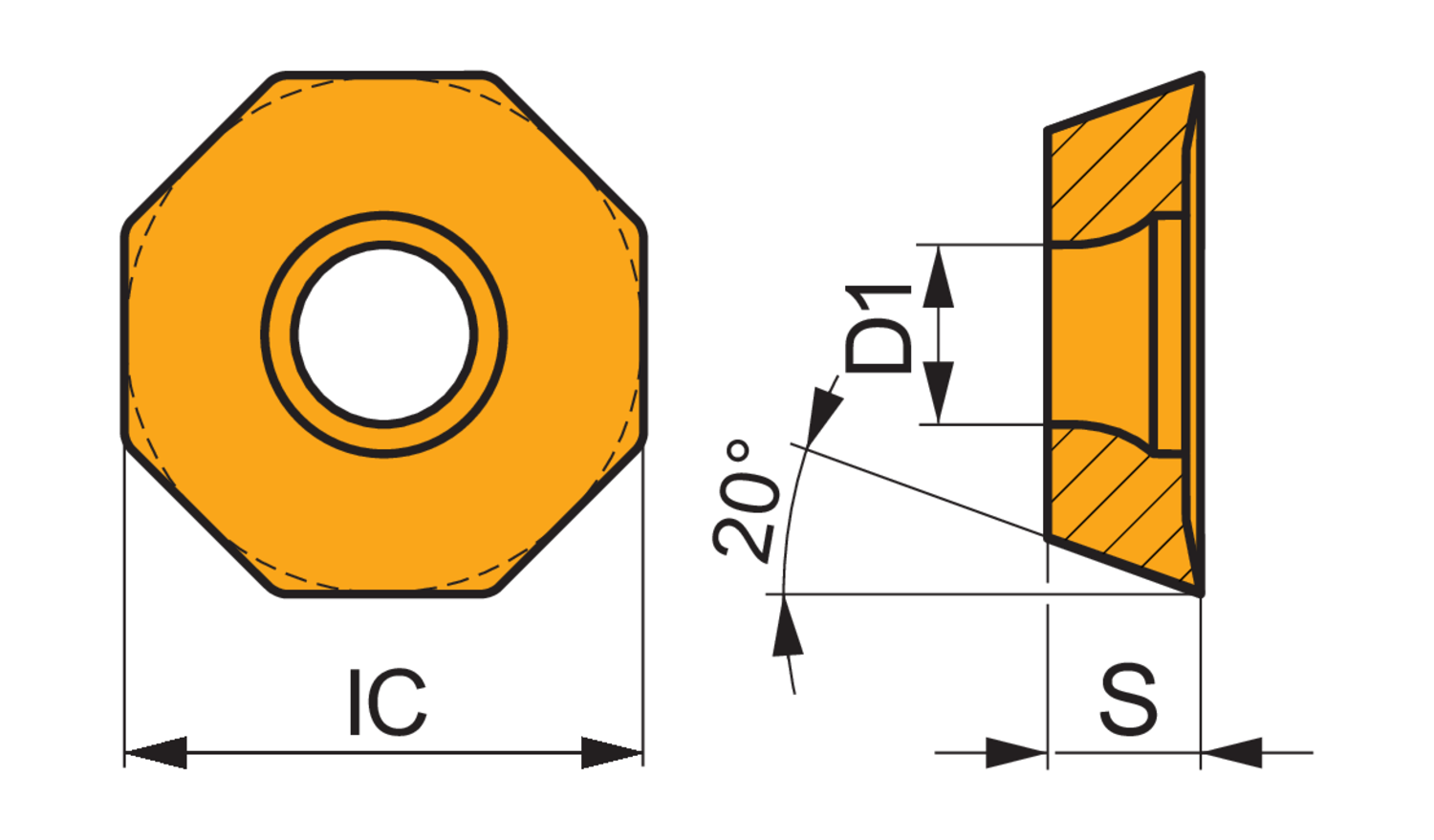

Single-sided milling insert OEHT 0604 with chip-breakers, octagonal for a maximum depth of cut of .1299", with " corner radius, an indexing accuracy according to ISO-tolerance class-H and MM geometry with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges M20-M40 and S20-S30 for machining of stainless-steel and superalloy with face mills SOE06Z
- Product Name ISO: OEHT 0604AEER-MM:M8340
- Ordering Code ANSI: OEHT 0604AEER-MM:M8340
- EDP Number: 6931654
- Coating: M8340
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3.3 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 16.05 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.13 |
| Coating | M8340 |
