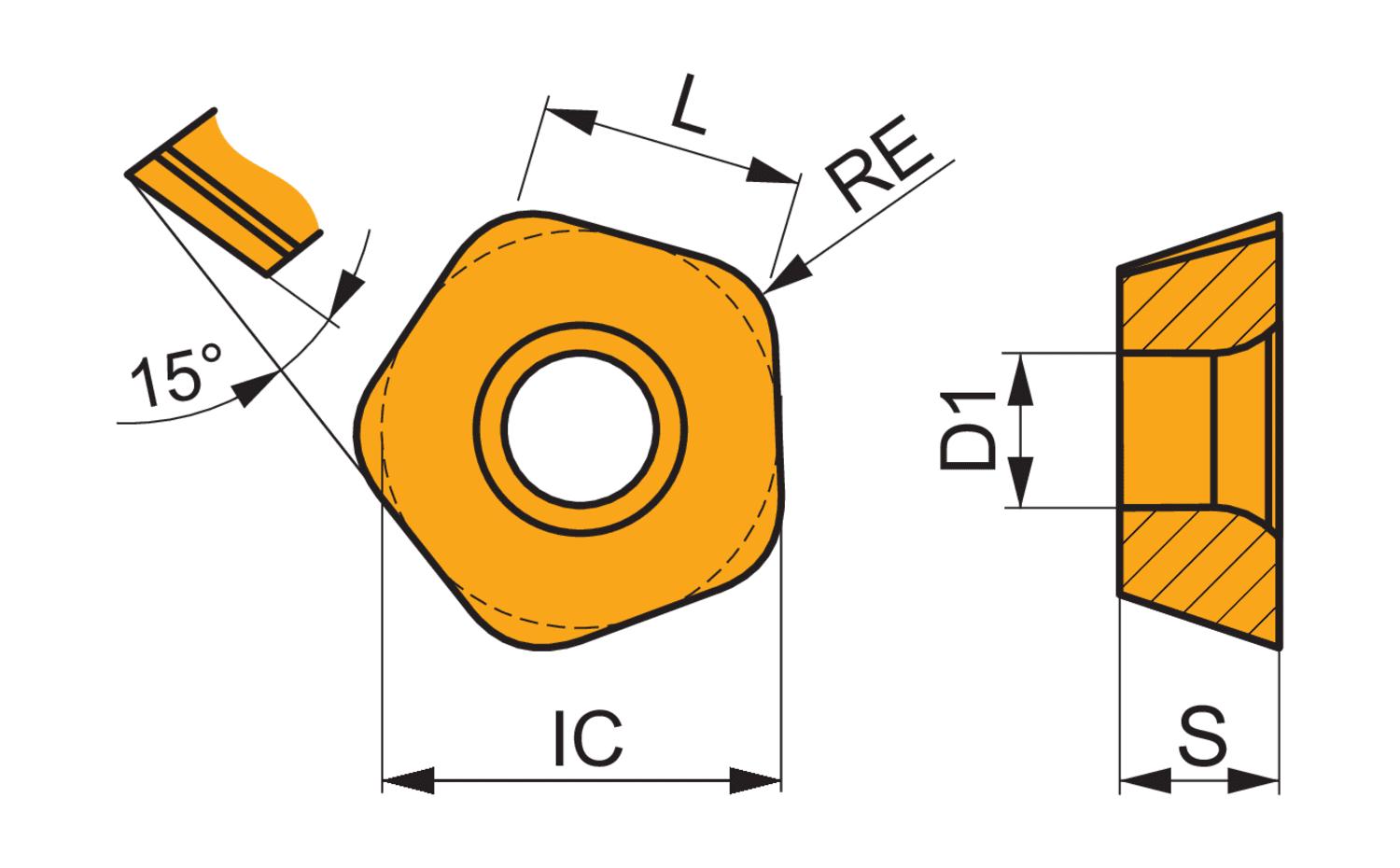

Single-sided milling insert PDMW 0905 with a plane rake surface, pentagonal for a maximum depth of cut of .0787", with .1181" corner radius, an indexing accuracy according to ISO-tolerance class-M with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide for machining with high feed cutters SPD09
- Product Name ISO: PDMW 090530SR:M8345
- Ordering Code ANSI: PDMW 090530SR:M8345
- EDP Number: 6756074
- Coating: M8345
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 3 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 13.5 |
| Insert Thickness (Mm.) | 5.47 |
| Max Depth of Cut (In.) | 0.079 |
| Coating | M8345 |
