Single-sided milling insert RCMT 2006 with chip-breakers, round for a maximum depth of cut of .3937", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide within ISO-grade range M30-M40 for machining of stainless-steel with copy face mills SRC20
- Product Name ISO: RCMT 2006MOSN-M:M9340
- Ordering Code ANSI: RCMT 2006MOSN-M:M9340
- EDP Number: 6756063
- Coating: M9340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

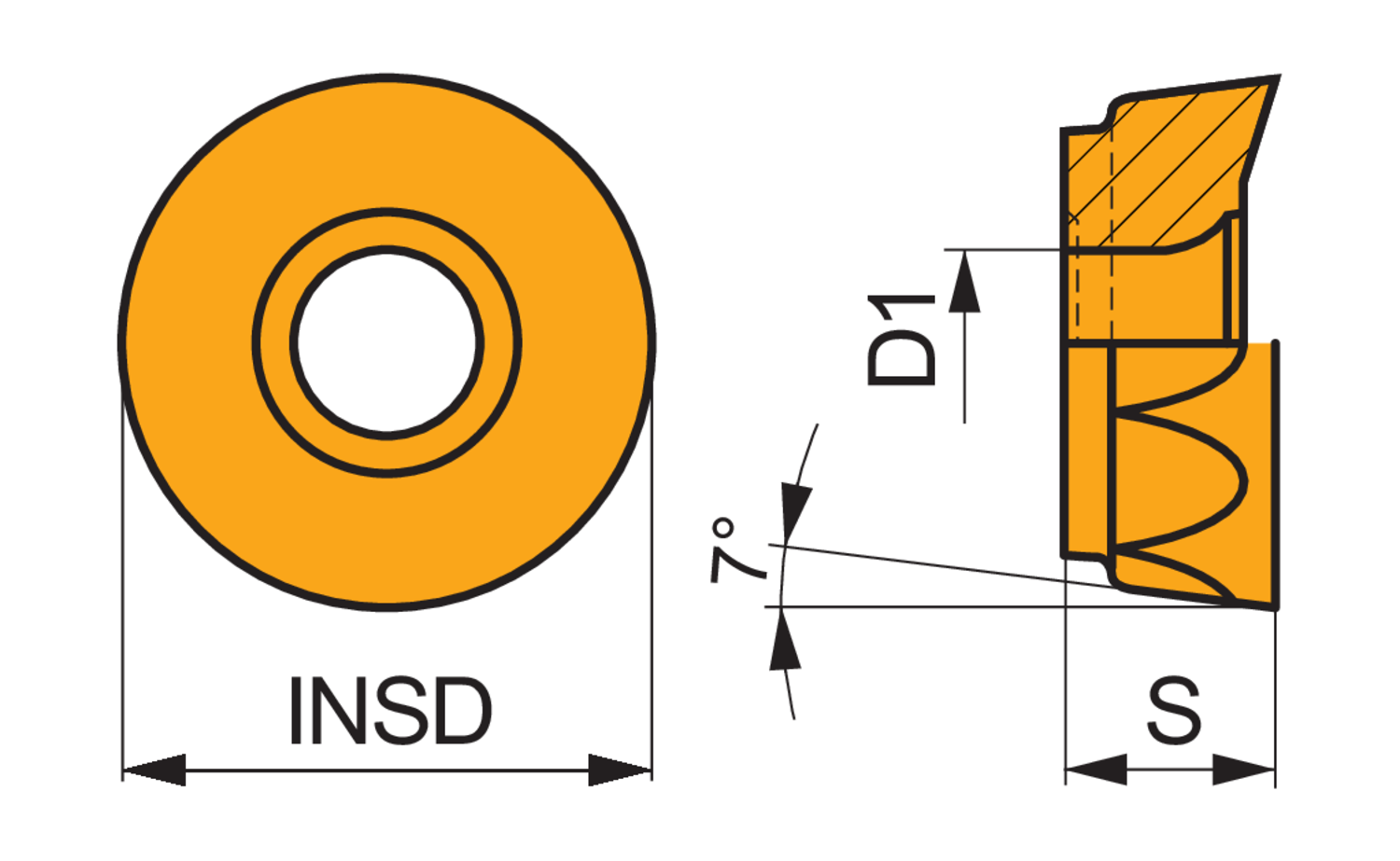

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 10 |
| Fixing Hole Diameter (Mm.) | 6.5 |
| Insert Dia. (Mm.) | 20 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.394 |
| Coating | M9340 |
