Single-sided milling insert RDGT 1205 with chip-breakers, round for a maximum depth of cut of .2362", with " corner radius, an indexing accuracy according to ISO-tolerance class-G and FM geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with copy face mills SOD05
- Product Name ISO: RDGT 120500SN-FM:M8330
- Ordering Code ANSI: RDGT 120500SN-FM:M8330
- EDP Number: 7447958
- Coating: M8330
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 6 |

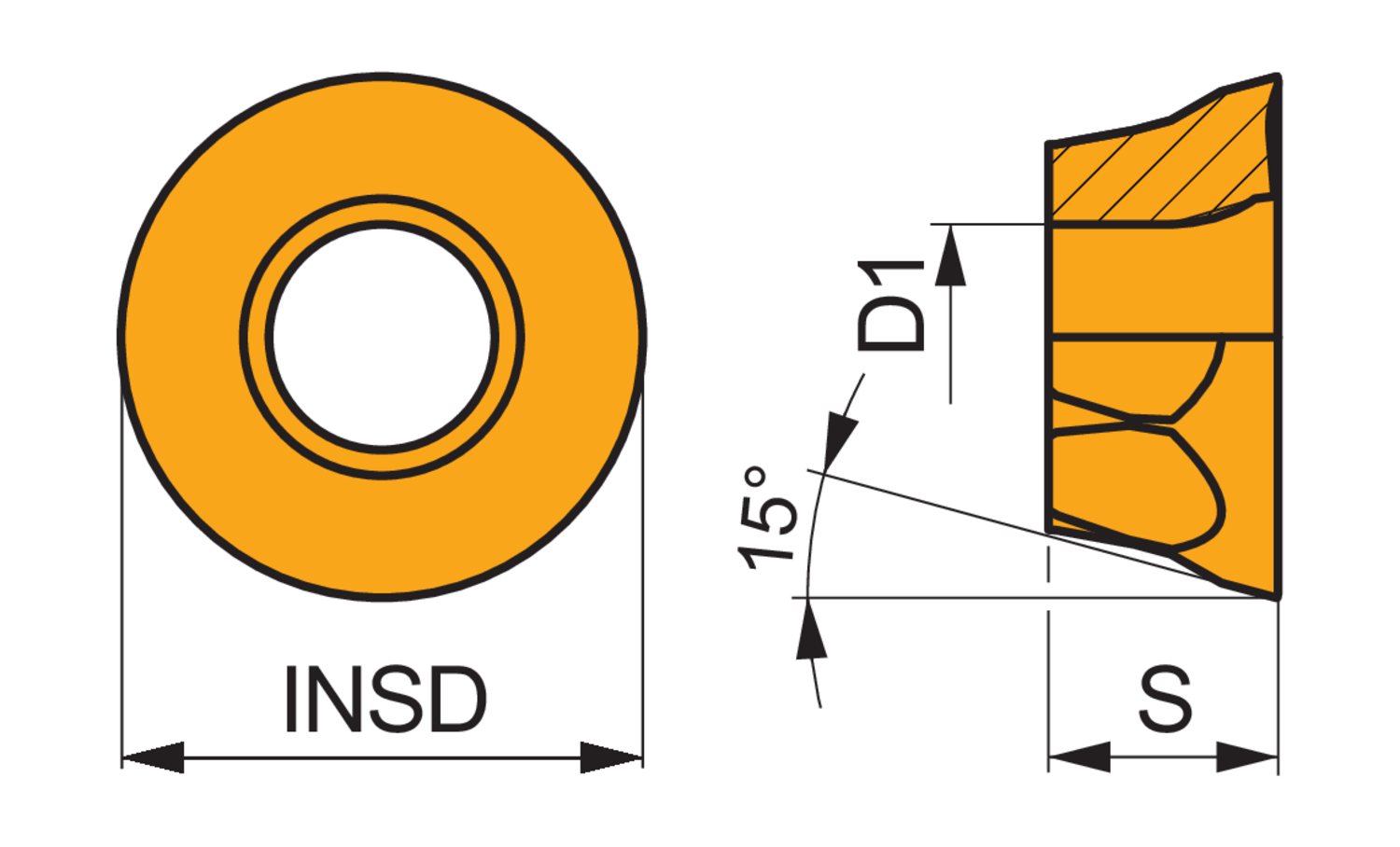

| Fixing Hole Diameter (Mm.) | 5.5 |
| Insert Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 5.56 |
| Max Depth of Cut (In.) | 0.236 |
| Coating | M8330 |
