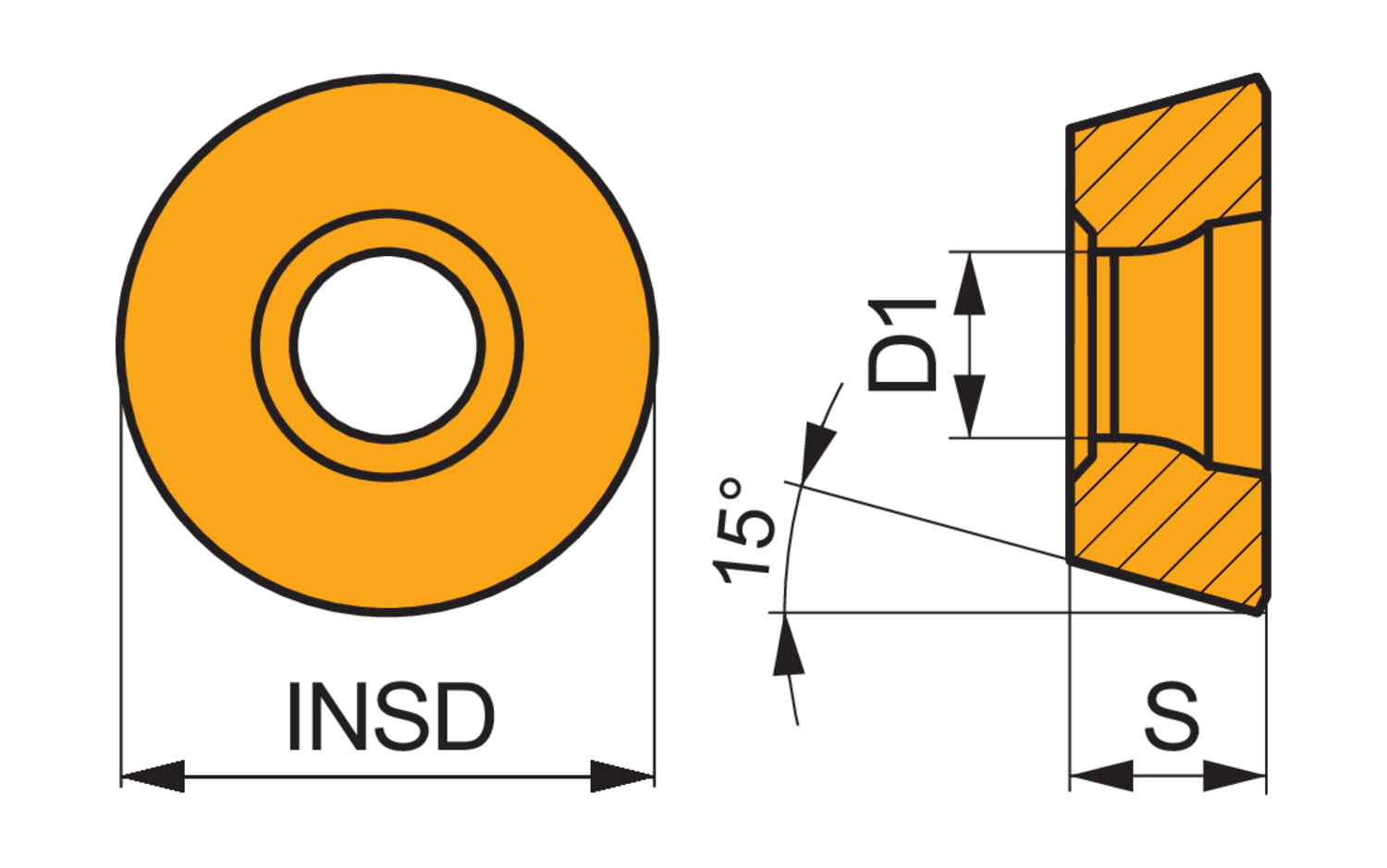

Single-sided milling insert RDHX 2006, round for a maximum depth of cut of .1969", with " corner radius, an indexing accuracy according to ISO-tolerance class-H with cutting edges with facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide
- Product Name ISO: RDHX 2006MOT:M8325
- Ordering Code ANSI: RDHX 2006MOT:M8325
- EDP Number: 6756009
- Coating: M8325
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |
| Fixing Hole Diameter (Mm.) | 5.2 |
| Insert Dia. (Mm.) | 20 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | M8325 |
