Single-sided milling insert RDMX 1604, round for a maximum depth of cut of .1575", with " corner radius, an indexing accuracy according to ISO-tolerance class-M with cutting edges with facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01-K10 and H05-H15 for machining of cast-iron and hardened material with copy face mills SRD16
- Product Name ISO: RDMX 1604MOT:M8310
- Ordering Code ANSI: RDMX 1604MOT:M8310
- EDP Number: 6801044
- Coating: M8310
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)

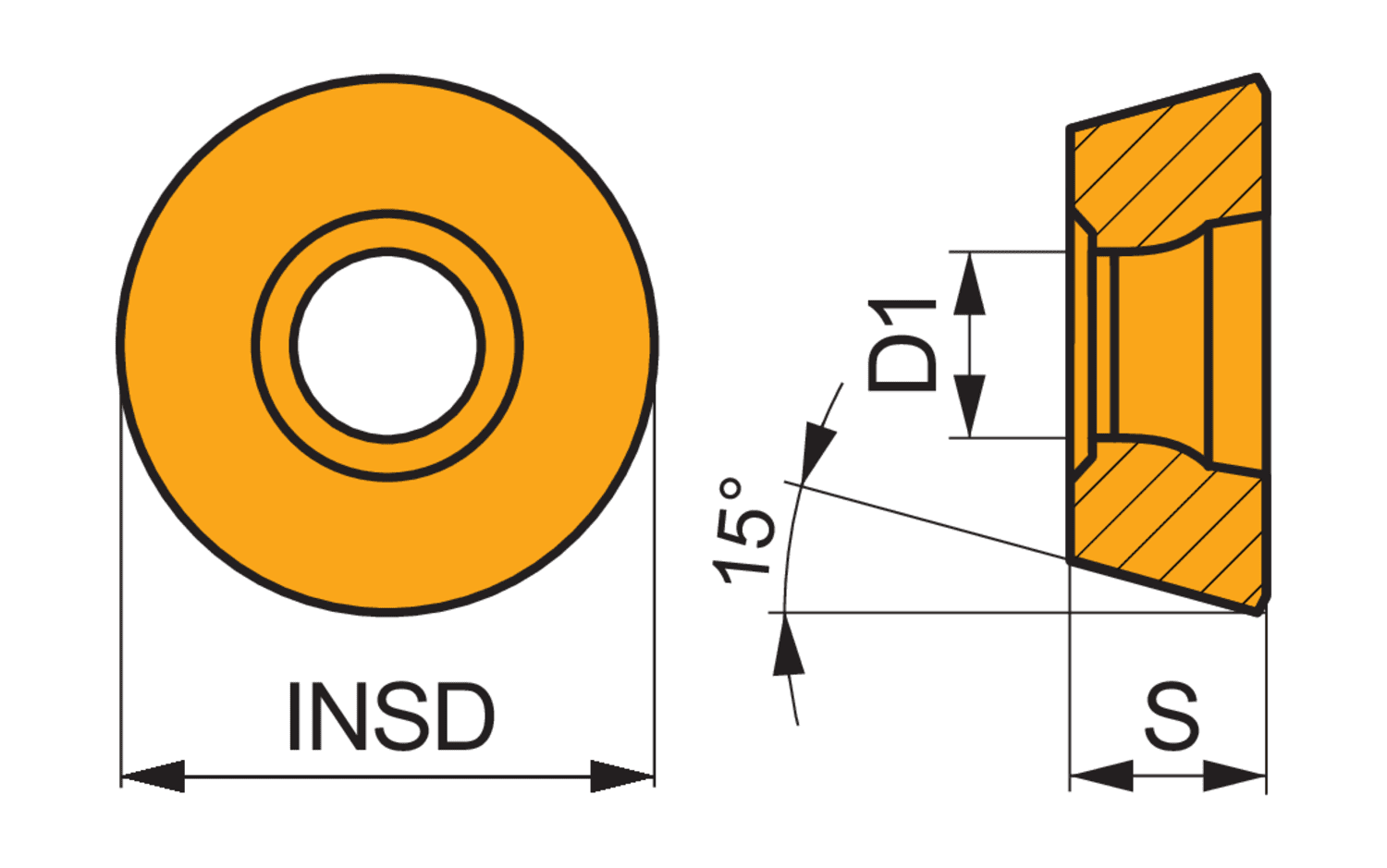

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4 |
| Fixing Hole Diameter (Mm.) | 5.2 |
| Insert Dia. (Mm.) | 16 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.157 |
| Coating | M8310 |
