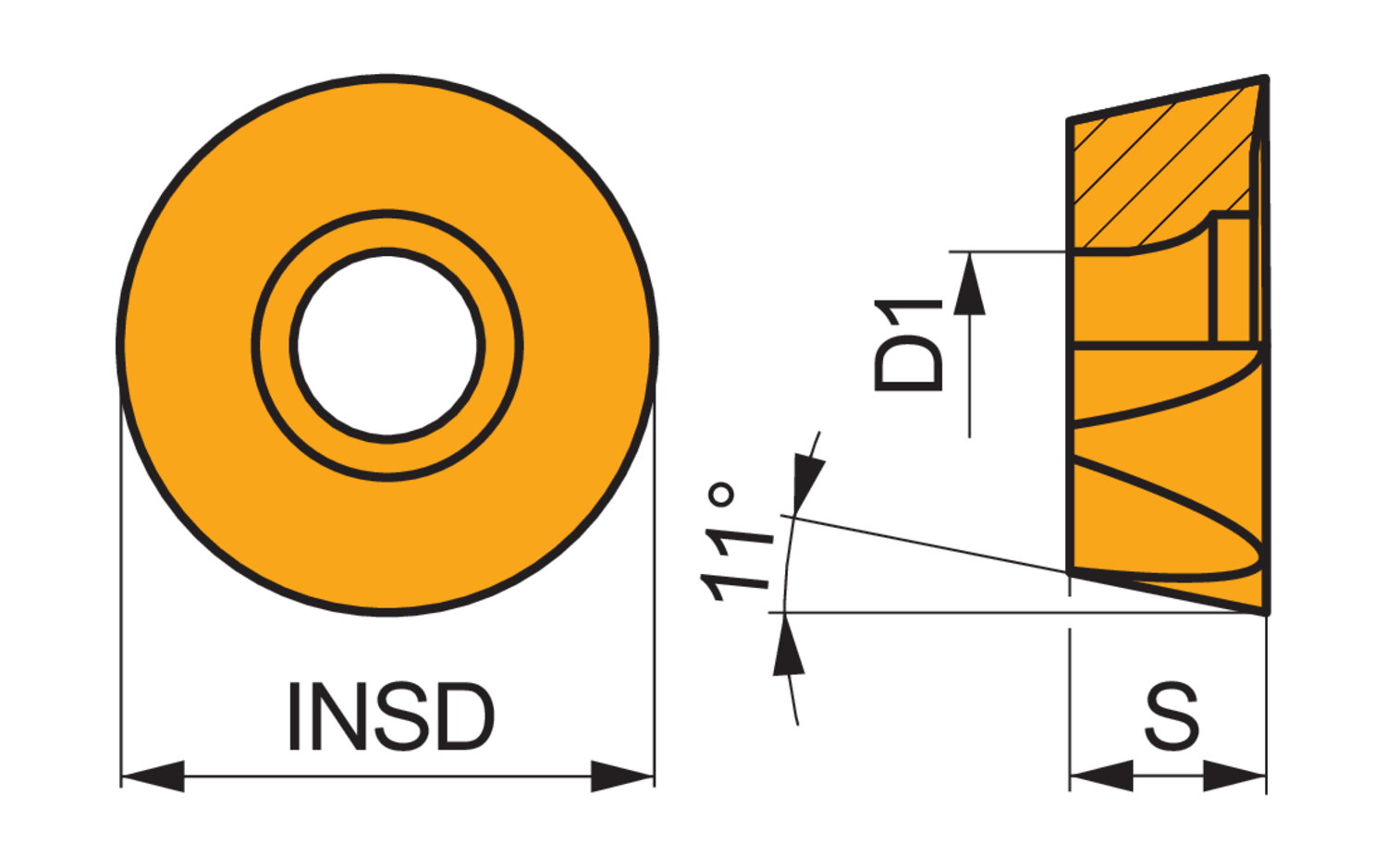

Single-sided milling insert RPET 1505 with chip-breakers, round for a maximum depth of cut of .1378", with " corner radius, an indexing accuracy according to ISO-tolerance class-E and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with face mills SOD06D
- Product Name ISO: RPET 1505MOS-M:M8330
- Ordering Code ANSI: RPET 1505MOS-M:M8330
- EDP Number: 7447965
- Coating: M8330
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3.5 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Insert Dia. (Mm.) | 15.785 |
| Insert Thickness (Mm.) | 5.56 |
| Max Depth of Cut (In.) | 0.138 |
| Coating | M8330 |
