Single-sided milling insert RPEX 1204, round for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-E and 12 geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel
- Product Name ISO: RPEX 1204MOSN-12:M8340
- Ordering Code ANSI: RPEX 1204MOSN-12:M8340
- EDP Number: 6800847
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |

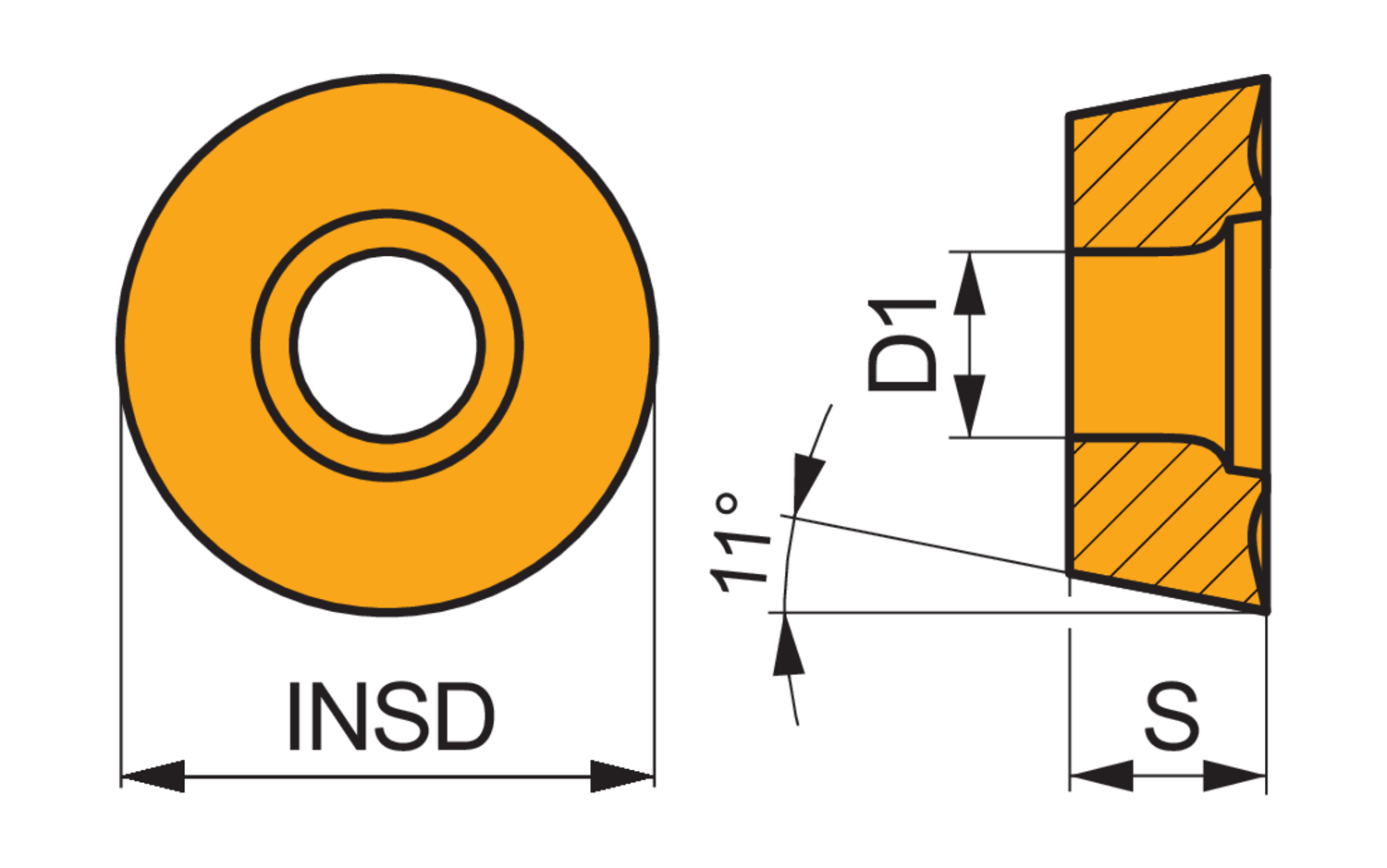

| Fixing Hole Diameter (Mm.) | 4.4 |
| Insert Dia. (Mm.) | 12 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.118 |
| Coating | M8340 |
