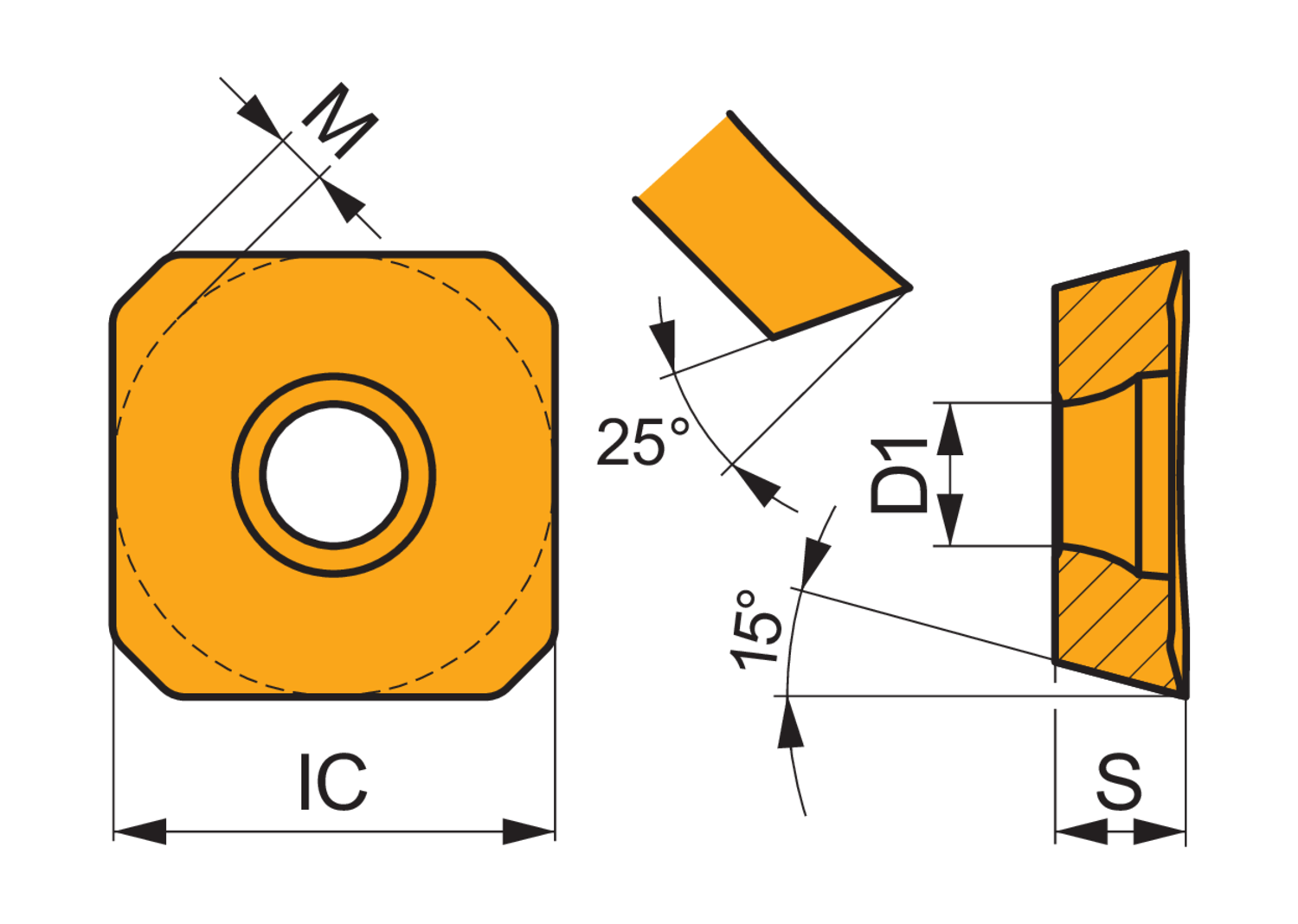

Single-sided milling insert SDET 13T3 with chip-breakers, square for a maximum depth of cut of 6.4mm, with an indexing accuracy according to ISO-tolerance class-E and F geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade ranges P20 -P35/M20 -M35 and S20 -S30 for machining of steel, stainless-steel and superalloy with face mills SSD13F
- Product Name ISO: SDET 13T3AFSN-F:M6330
- Ordering Code ANSI: SDET 13T3AFSN-F:M6330
- EDP Number: 8202680
- Coating: M6330
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Product Measurement Standard | Metric |
Fixing Hole Diameter (Mm.) | 4.4 |
Inscribing Circle Dia. (Mm.) | 13.385 |
Insert Thickness (Mm.) | 3.97 |
Coating | M6330 |
