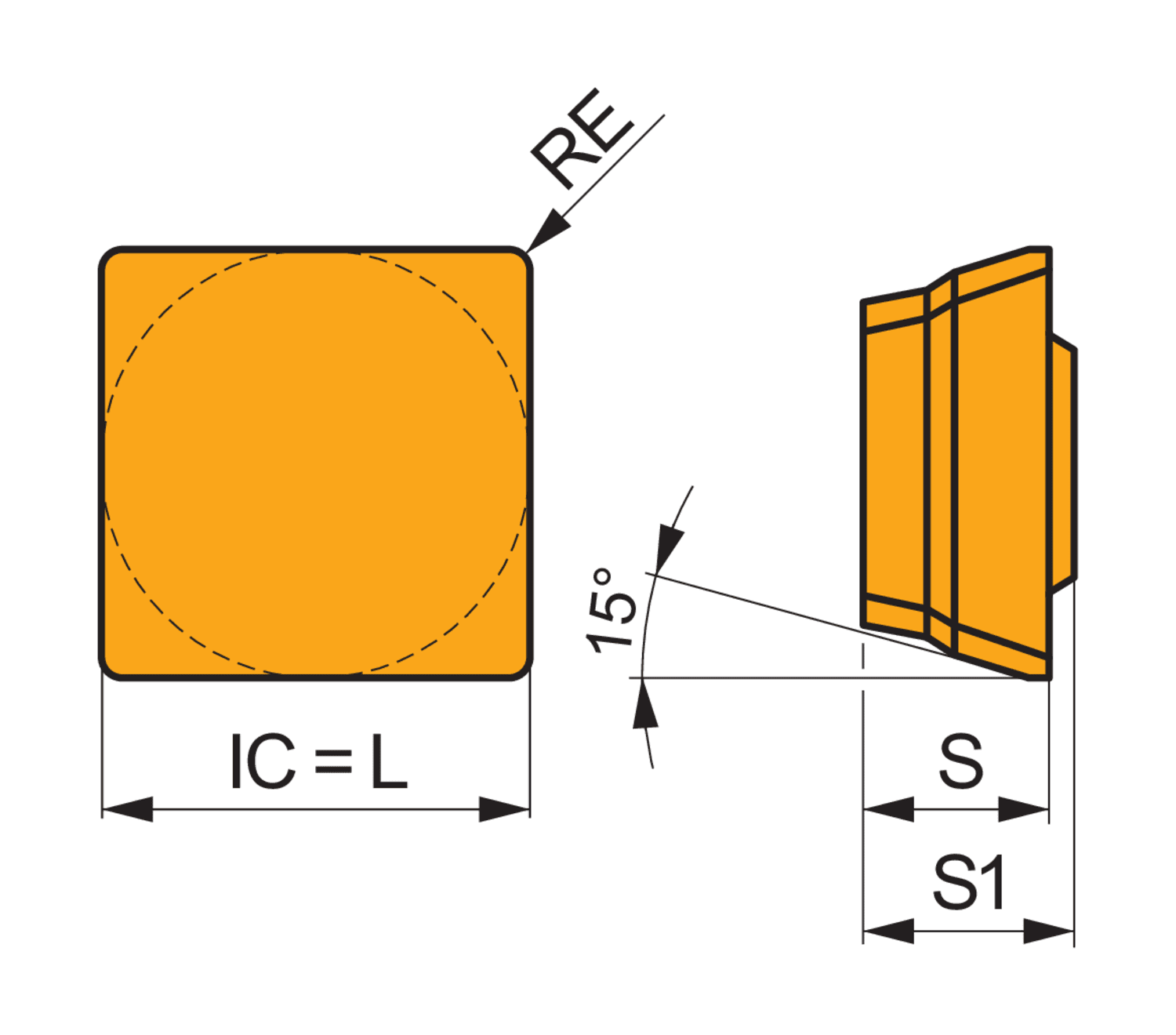

Single-sided milling insert SDGX 1205, square for a maximum depth of cut of .4724", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G and FM geometry with rounded cutting edges, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with shoulder mills with extended flute J(T)-CSD12X
- Product Name ISO: SDGX 120508EN-FM:M8345
- Ordering Code ANSI: SDGX 120508EN-FM:M8345
- EDP Number: 6756068
- Coating: M8345
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12 |
| Corner Radius (Mm.) | 0.8 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 5.56 |
| Max Depth of Cut (In.) | 0.472 |
| Coating | M8345 |
