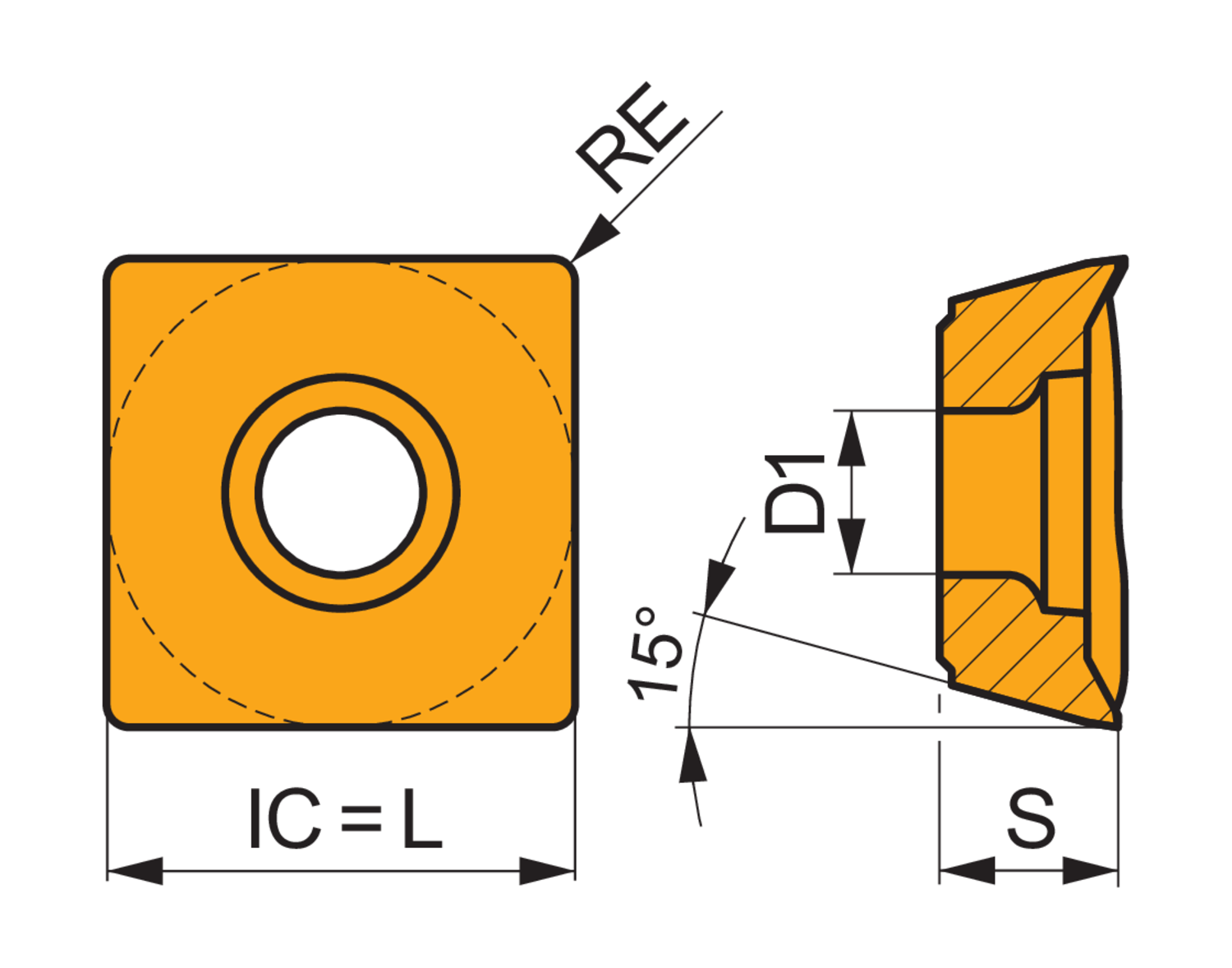

Single-sided milling insert SDMT 1205 with chip-breakers, square for a maximum depth of cut of .3937", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining of steel with shoulder mills SSD12
- Product Name ISO: SDMT 120508SR-M:M9325
- Ordering Code ANSI: SDMT 120508SR-M:M9325
- EDP Number: 6754562
- Coating: M9325
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 10 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 5 |
| Max Depth of Cut (In.) | 0.394 |
| Coating | M9325 |
