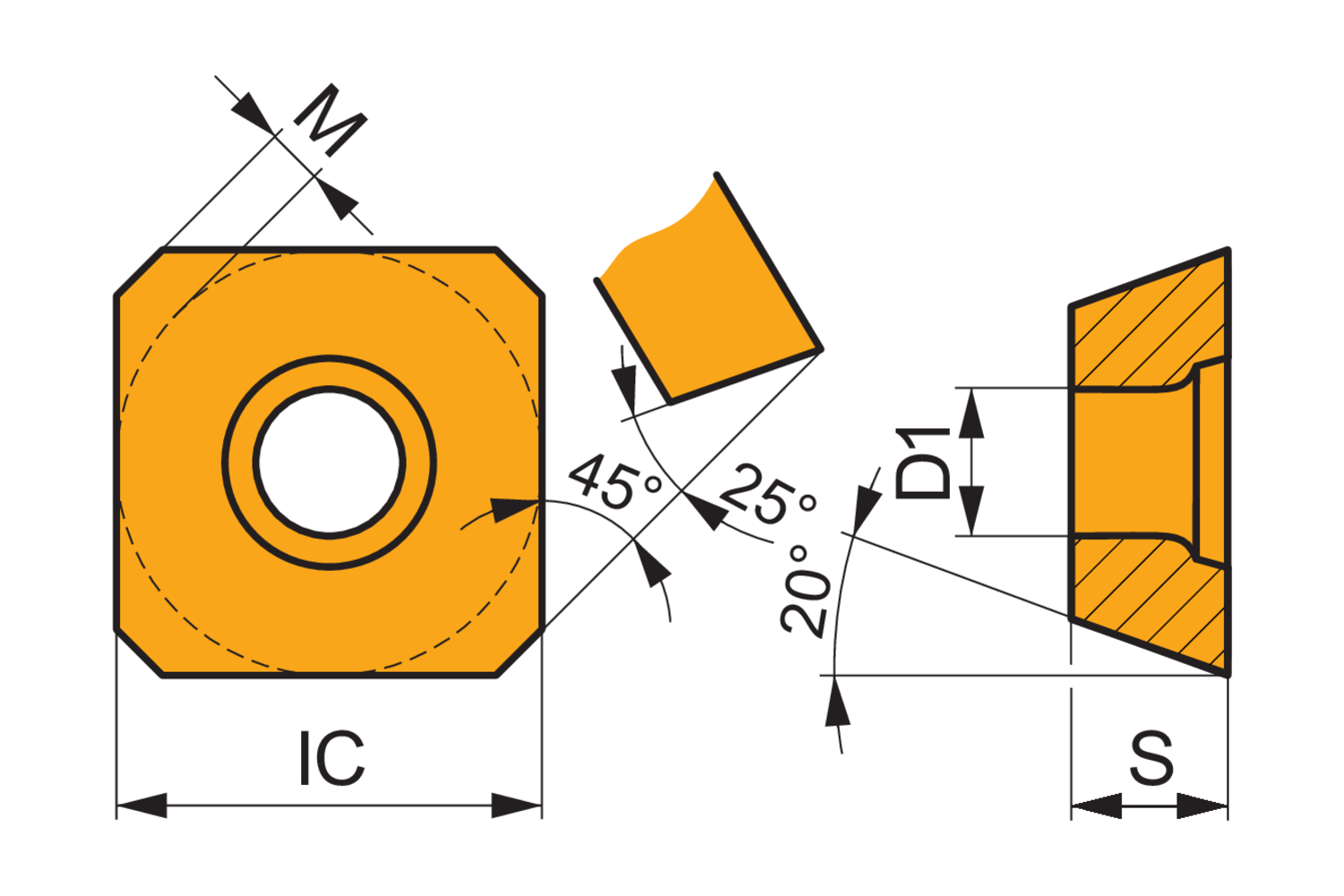

Single-sided milling insert SEEW 1204 with a plane rake surface, square for a maximum depth of cut of .2559", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide
- Product Name ISO: SEEW 1204AFSN:M9325
- Ordering Code ANSI: SEEW 1204AFSN:M9325
- EDP Number: 6754569
- Coating: M9325
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 6.5 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.256 |
| Coating | M9325 |
