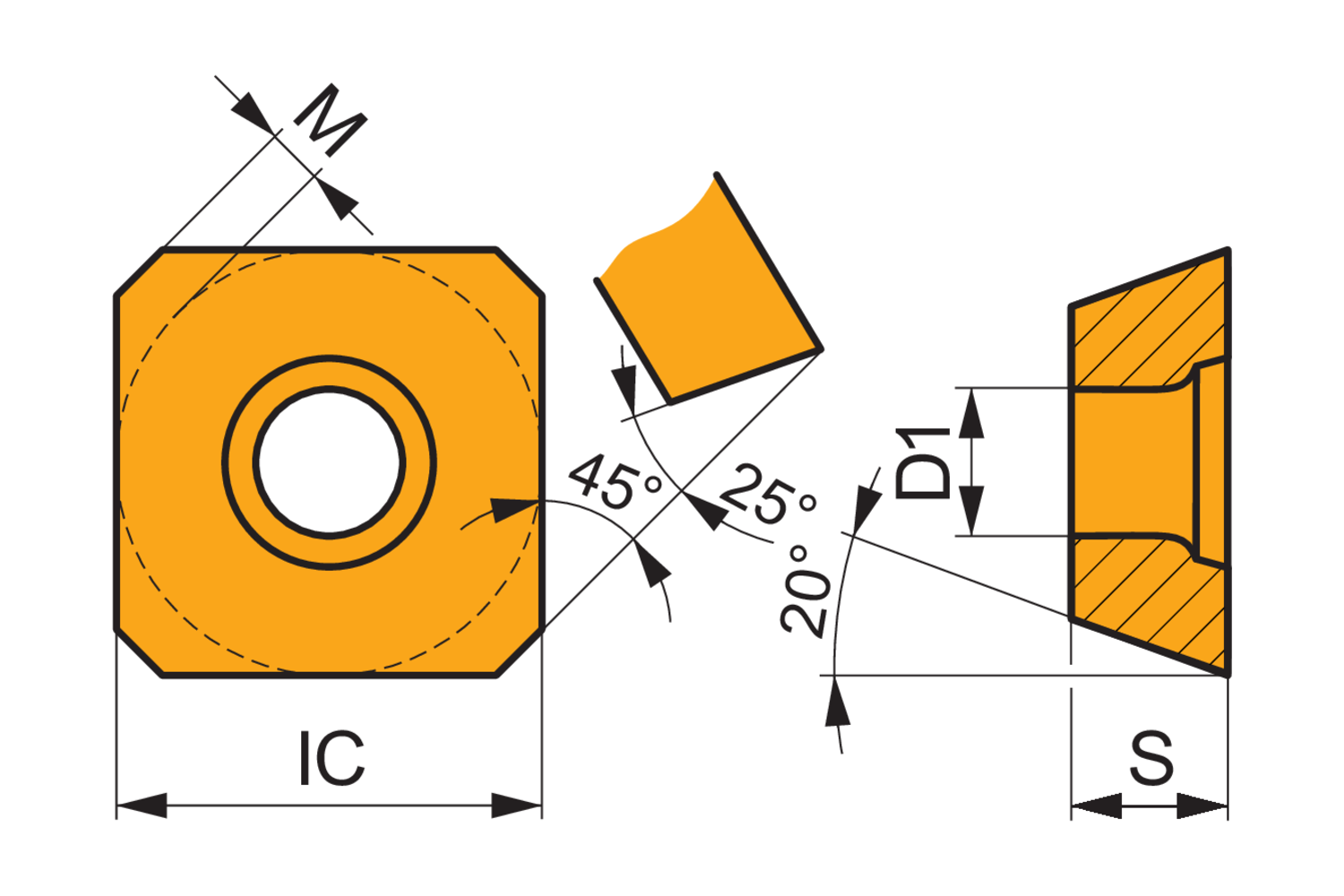

Single-sided milling insert SEEW 1204 with a plane rake surface, square for a maximum depth of cut of .2559", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron
- Product Name ISO: SEEW 1204AFEN:M8330
- Ordering Code ANSI: SEEW 1204AFEN:M8330
- EDP Number: 7451007
- Coating: M8330
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 6.5 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.256 |
| Coating | M8330 |
