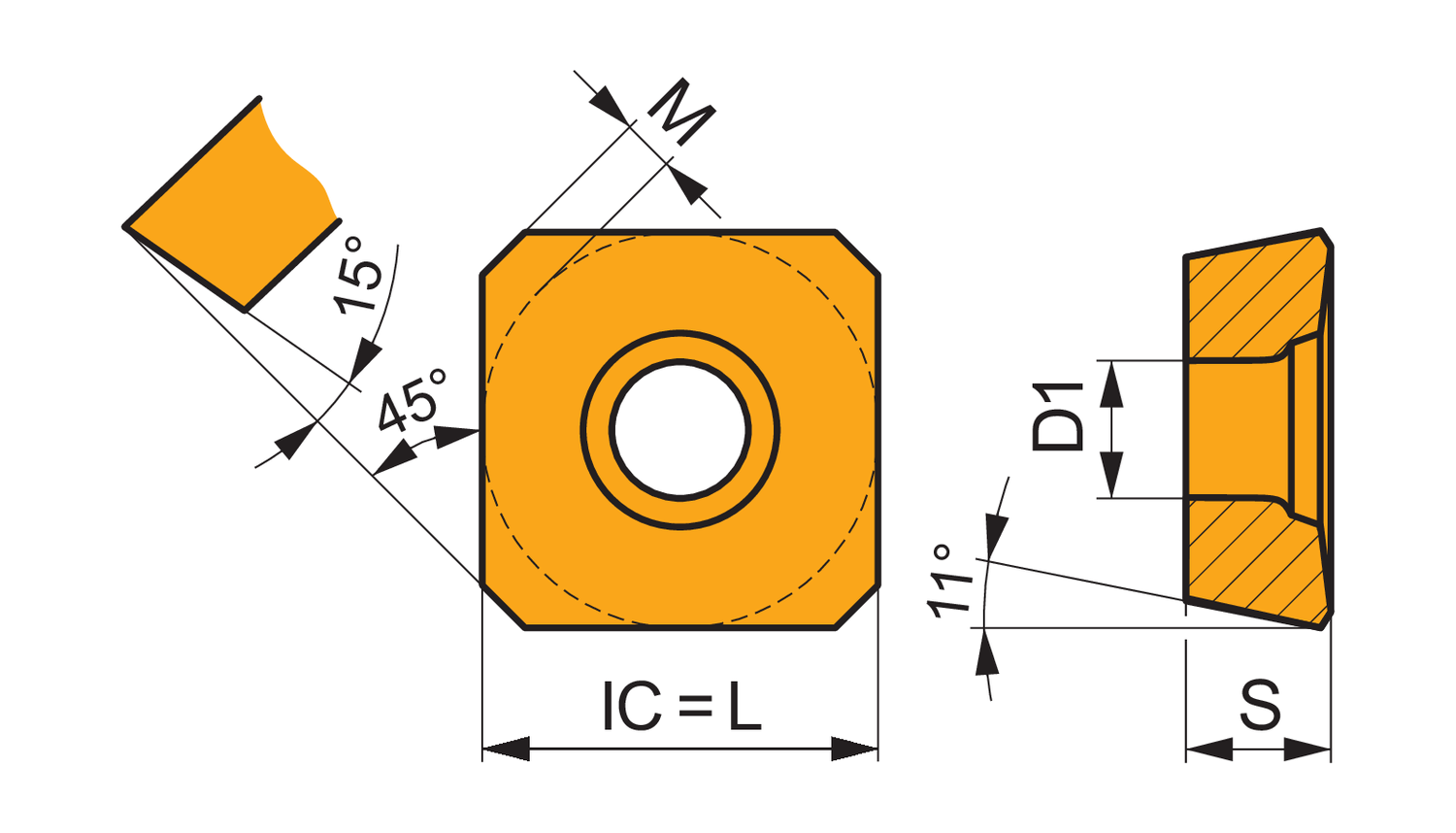

Single-sided milling insert SPET 1204 with chip-breakers, square for a maximum depth of cut of .4724", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with shoulder mills with extended flute J(T)-SSAP
- Product Name ISO: SPET 1204ADSN:M8340
- Ordering Code ANSI: SPET 1204ADSN:M8340
- EDP Number: 6800892
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.472 |
| Coating | M8340 |
