Single-sided milling insert SPGN 0903 with a plane rake surface, square for a maximum depth of cut of .2362", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G, M8340 PVD coated fine grained WC-Co carbide for machining with shoulder mills WSP25P
- Product Name ISO: SPGN 090308:M8340
- Ordering Code ANSI: SPG 322:M8340
- EDP Number: 6800895
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 6 |
| Corner Radius (Mm.) | 0.8 |

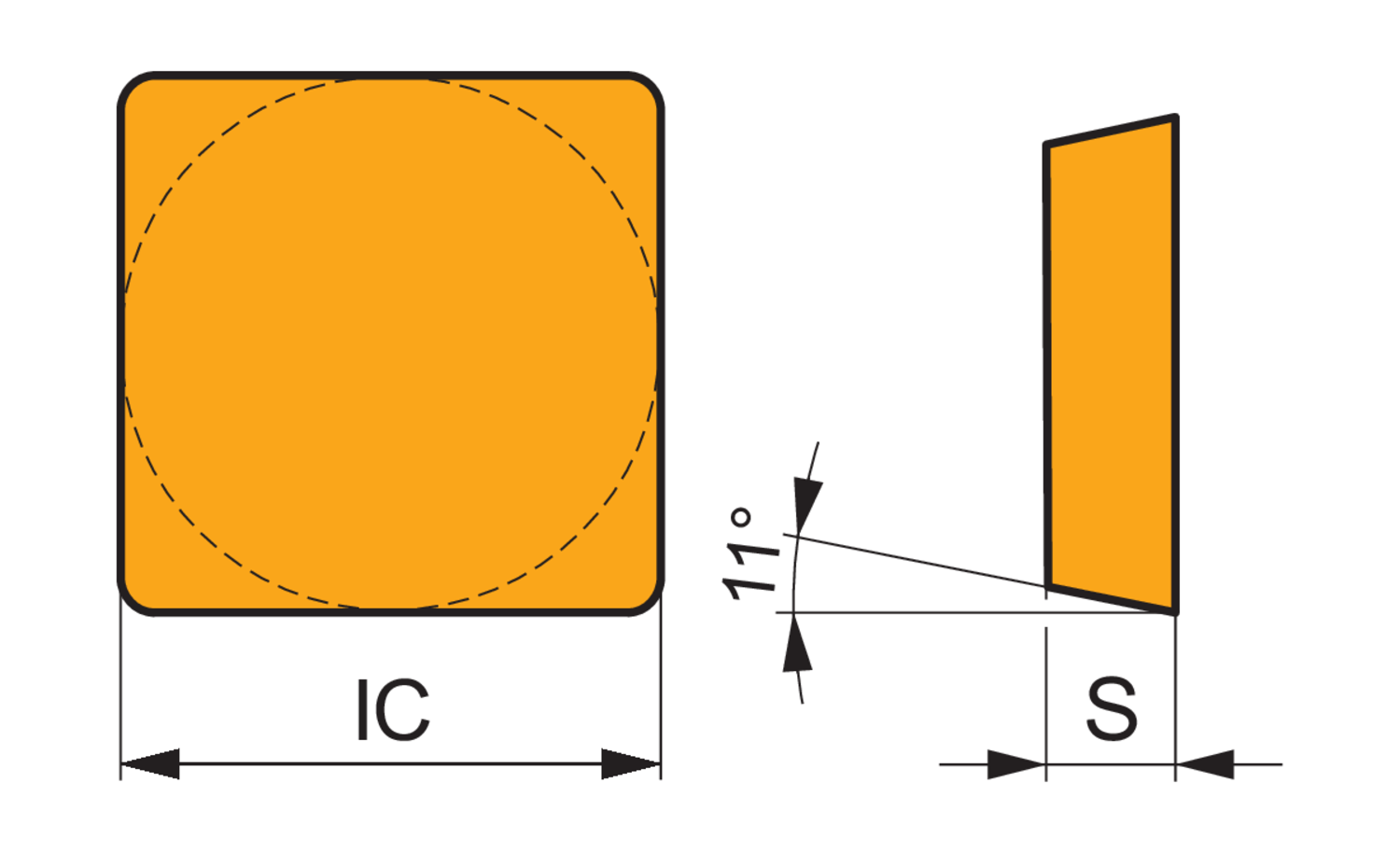

| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.236 |
| Coating | M8340 |
