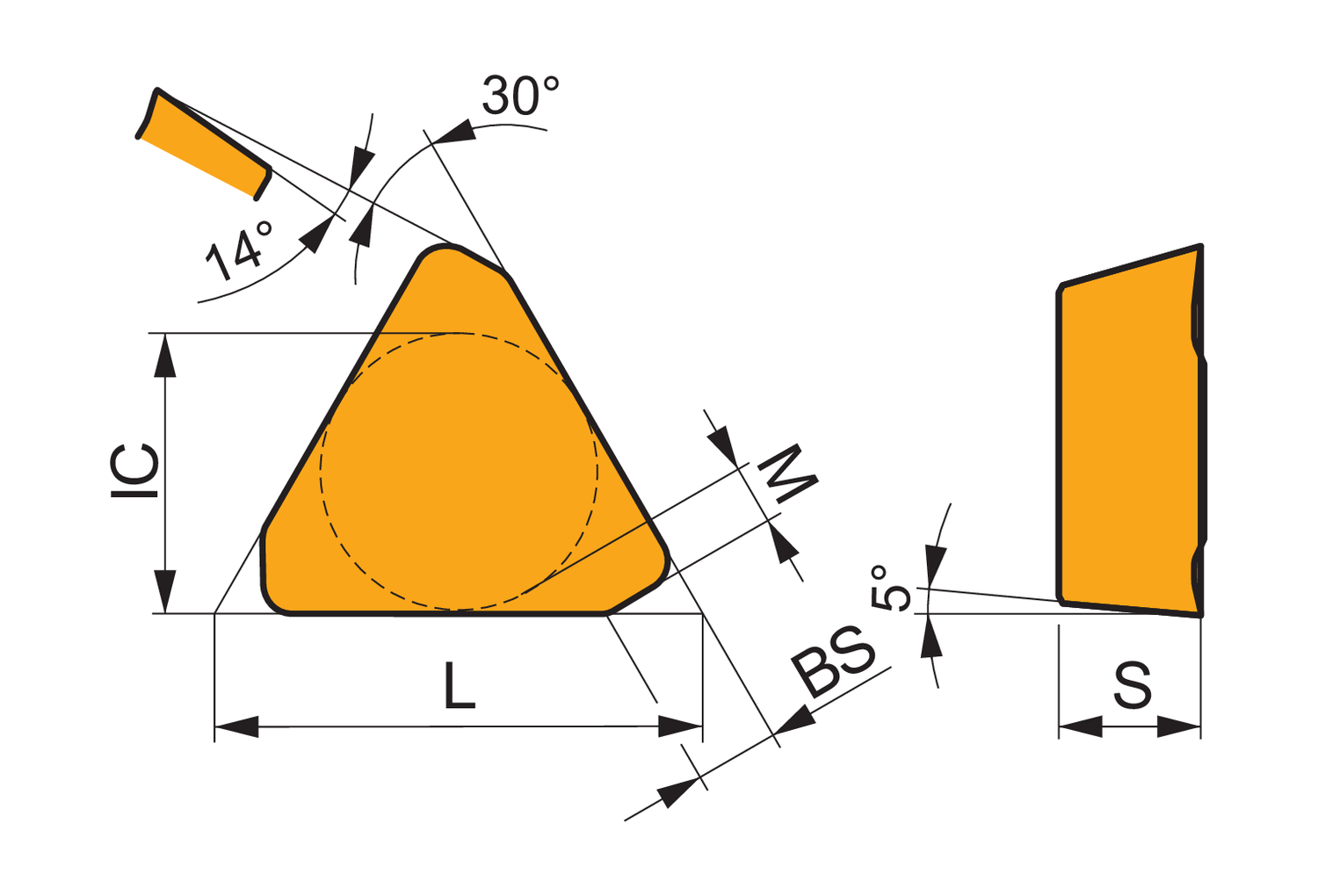

Single-sided milling insert TBMR 2707 with chip-breakers, triangular for a maximum depth of cut of .7087", with " corner radius, an indexing accuracy according to ISO-tolerance class-M with rounded cutting edges and facet, M8326 PVD coated WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder mills FTB27X
- Product Name ISO: TBMR 2707PZSR:M8326
- Ordering Code ANSI: TBMR 2707PZSR:M8326
- EDP Number: 6801318
- Coating: M8326
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 18 |
| Inscribing Circle Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 7.94 |
| Max Depth of Cut (In.) | 0.709 |
| Coating | M8326 |
