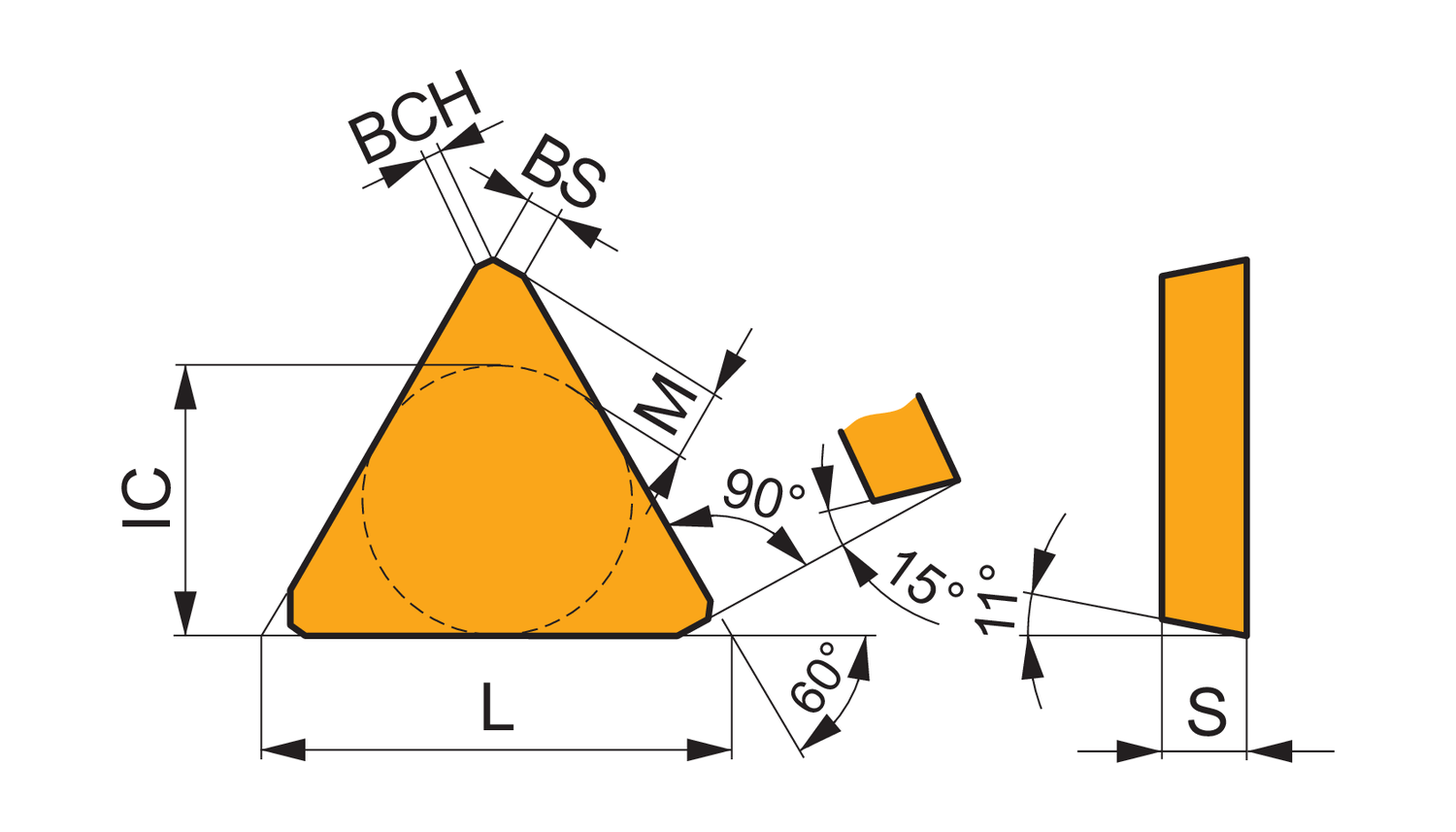

Single-sided milling insert TPKN 1603 with a plane rake surface, triangular for a maximum depth of cut of .4724", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide
- Product Name ISO: TPKN 1603PDER:M8340
- Ordering Code ANSI: TPKN 32PDER:M8340
- EDP Number: 6803606
- Coating: M8340
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12 |
| Inscribing Circle Dia. (Mm.) | 9.53 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.472 |
| Coating | M8340 |
