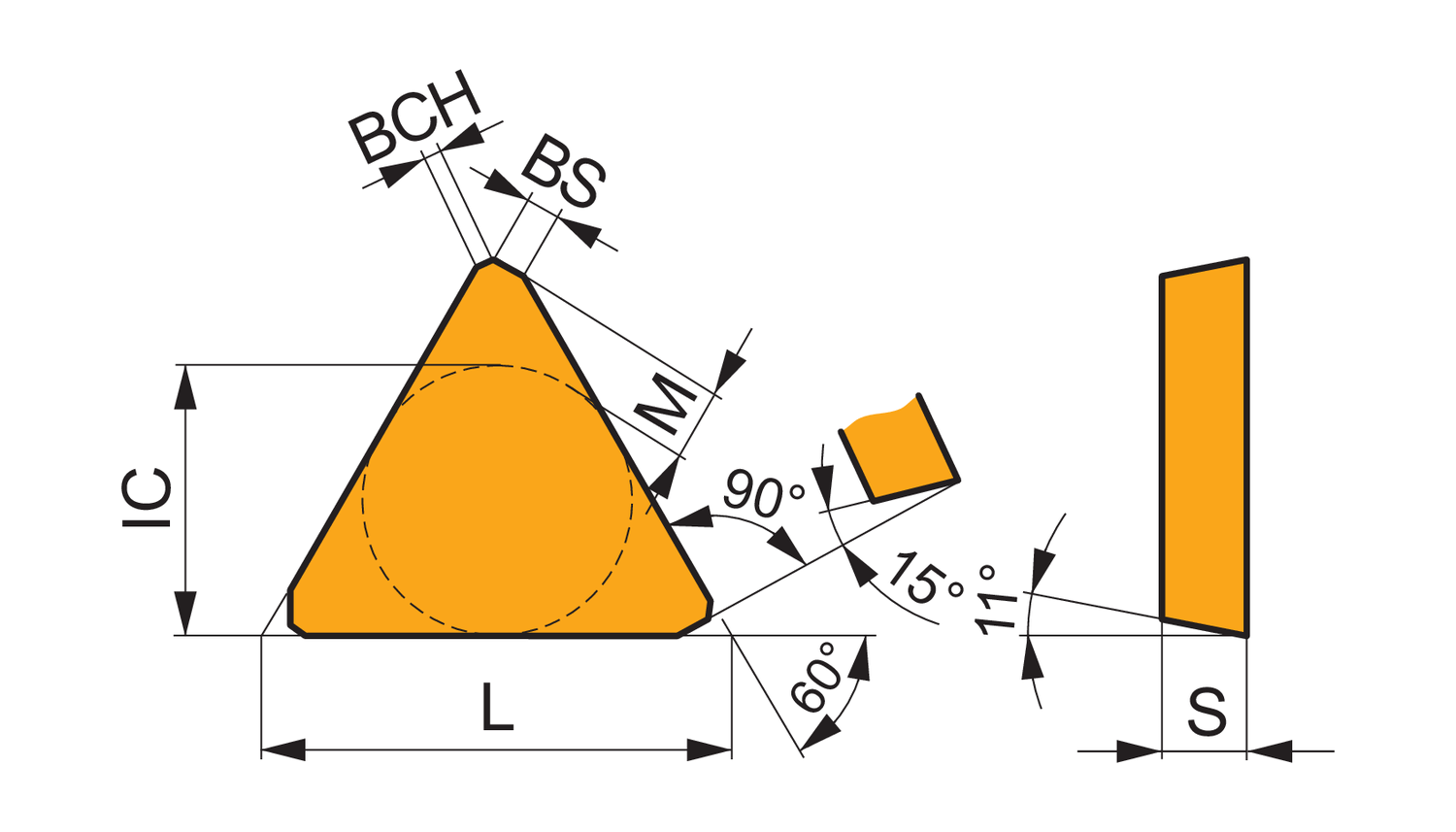

Single-sided milling insert TPKN 2204 with a plane rake surface, triangular for a maximum depth of cut of .6693", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron
- Product Name ISO: TPKN 2204PDSR:M8330
- Ordering Code ANSI: TPKN 43PDSR:M8330
- EDP Number: 7451108
- Coating: M8330
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 17 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.669 |
| Coating | M8330 |
