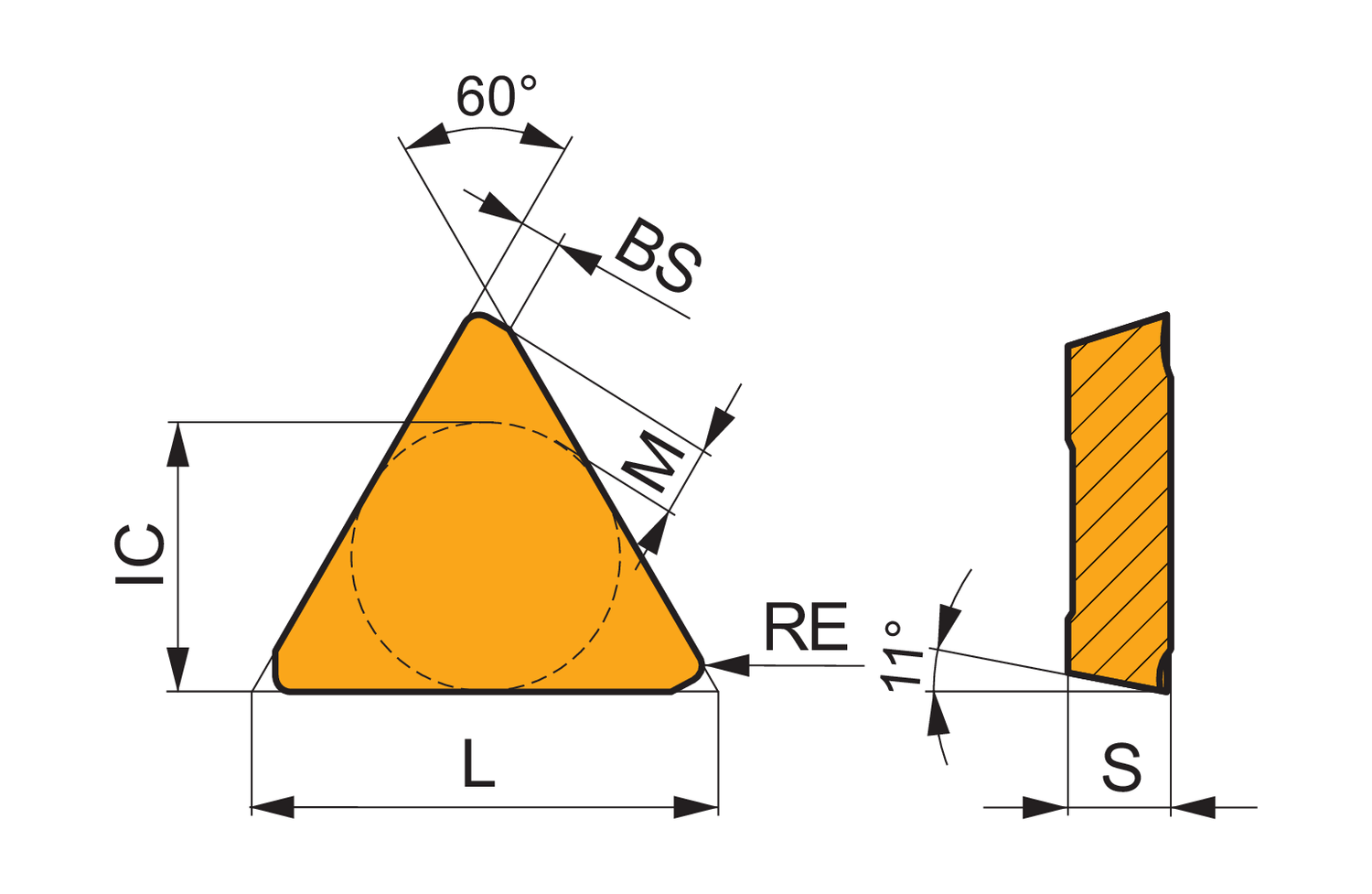

Single-sided milling insert TPKR 1603 with chip-breakers, triangular for a maximum depth of cut of .4724", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel
- Product Name ISO: TPKR 1603PDSR:M8340
- Ordering Code ANSI: TPKR 32PDSR:M8340
- EDP Number: 6803610
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12 |
| Inscribing Circle Dia. (Mm.) | 9.53 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.472 |
| Coating | M8340 |
