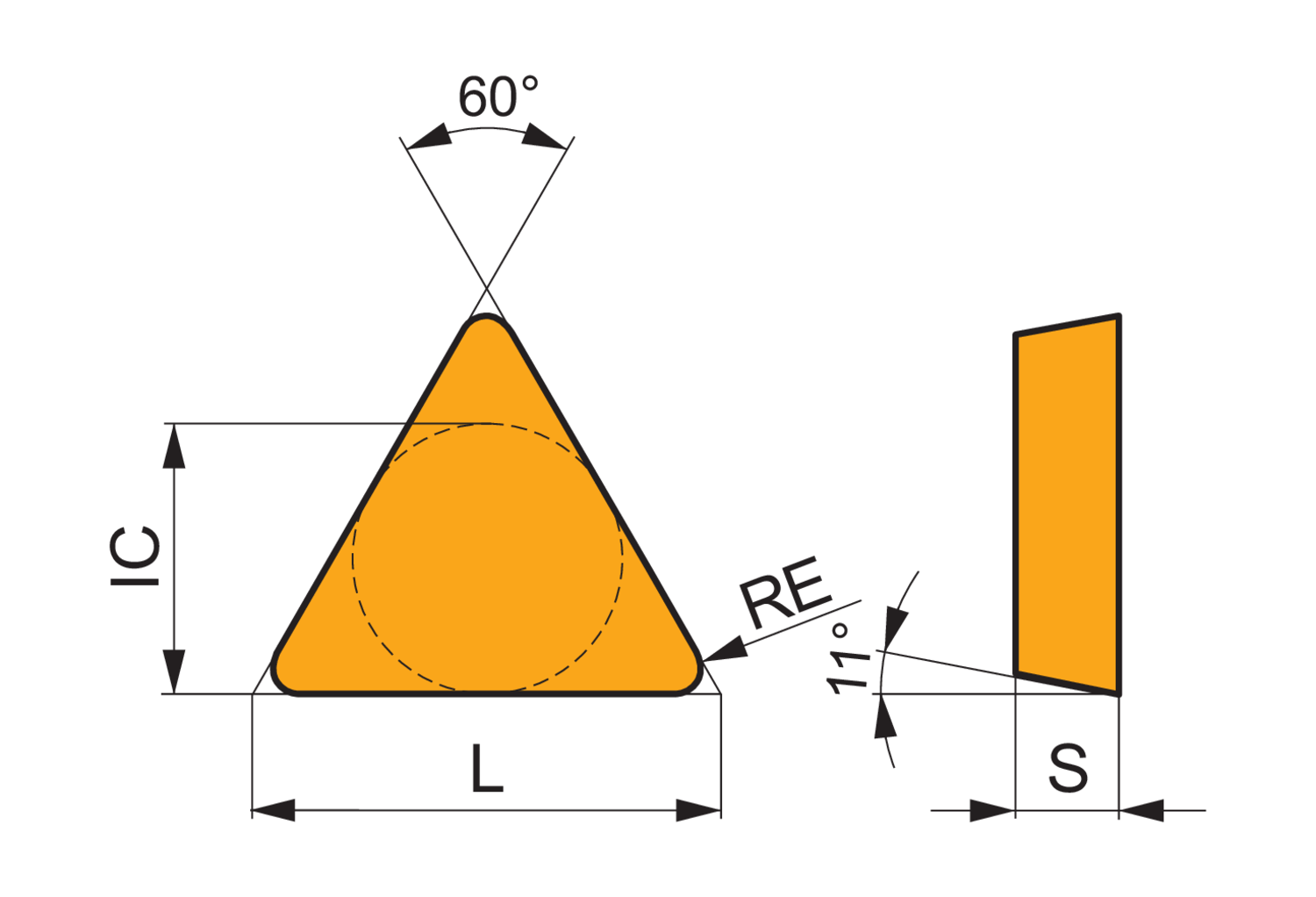

Single-sided milling insert TPUN 1103 with a plane rake surface, triangular for a maximum depth of cut of .315", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-U, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron
- Product Name ISO: TPUN 110304:M8330
- Ordering Code ANSI: TPU 221:M8330
- EDP Number: 7451111
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 8 |
| Corner Radius (Mm.) | 0.4 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.315 |
| Coating | M8330 |
