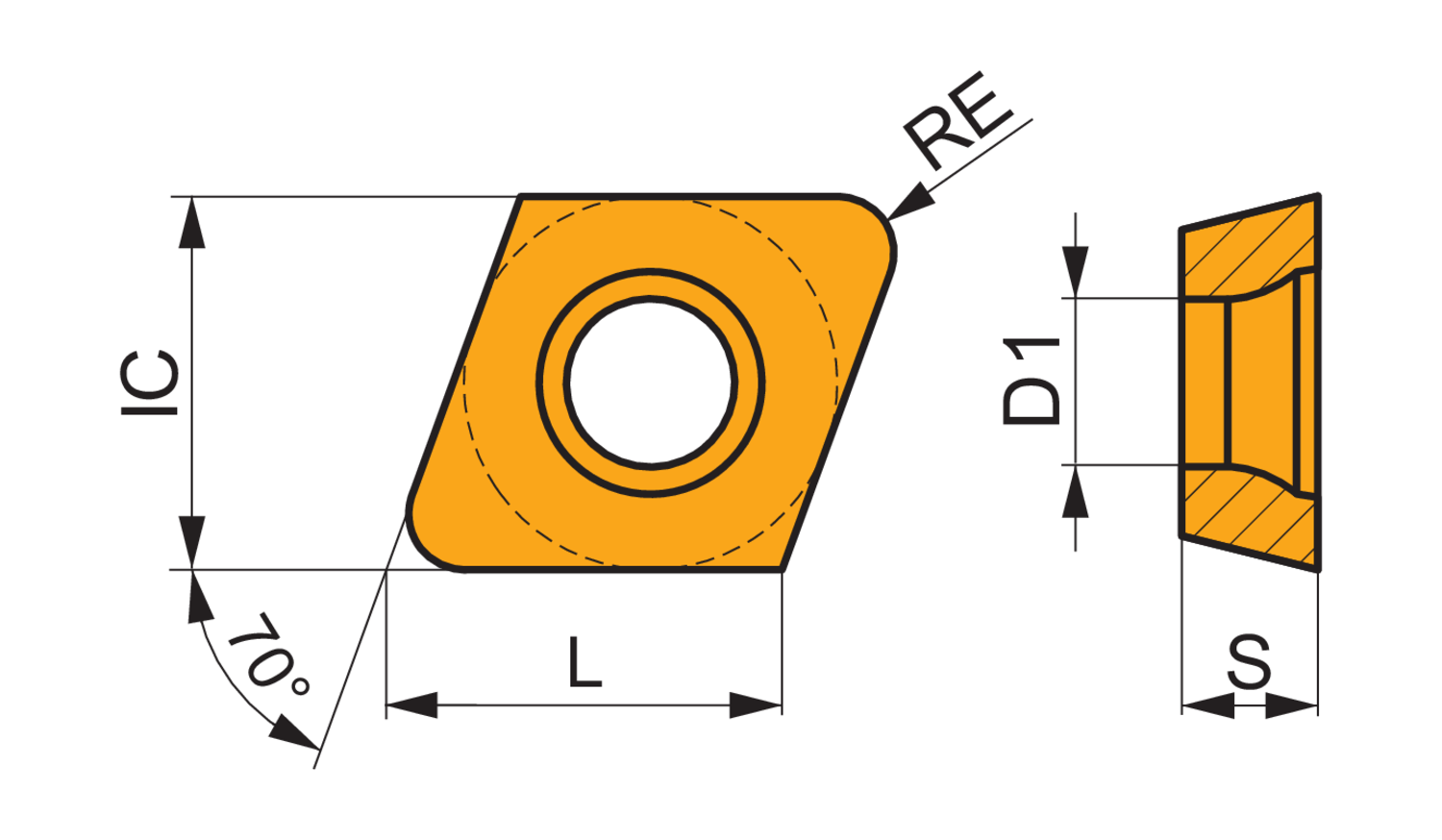

Single-sided milling insert XDHW 0702 with a plane rake surface, 70° rhomboid for a maximum depth of cut of .0394", with .0394" corner radius, an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges and facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide
- Product Name ISO: XDHW 070210SN:M8325
- Ordering Code ANSI: XDHW 070210SN:M8325
- EDP Number: 6756012
- Coating: M8325
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1 |
| Corner Radius (Mm.) | 1 |
| Fixing Hole Diameter (Mm.) | 2.95 |
| Inscribing Circle Dia. (Mm.) | 6.5 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.039 |
| Coating | M8325 |
