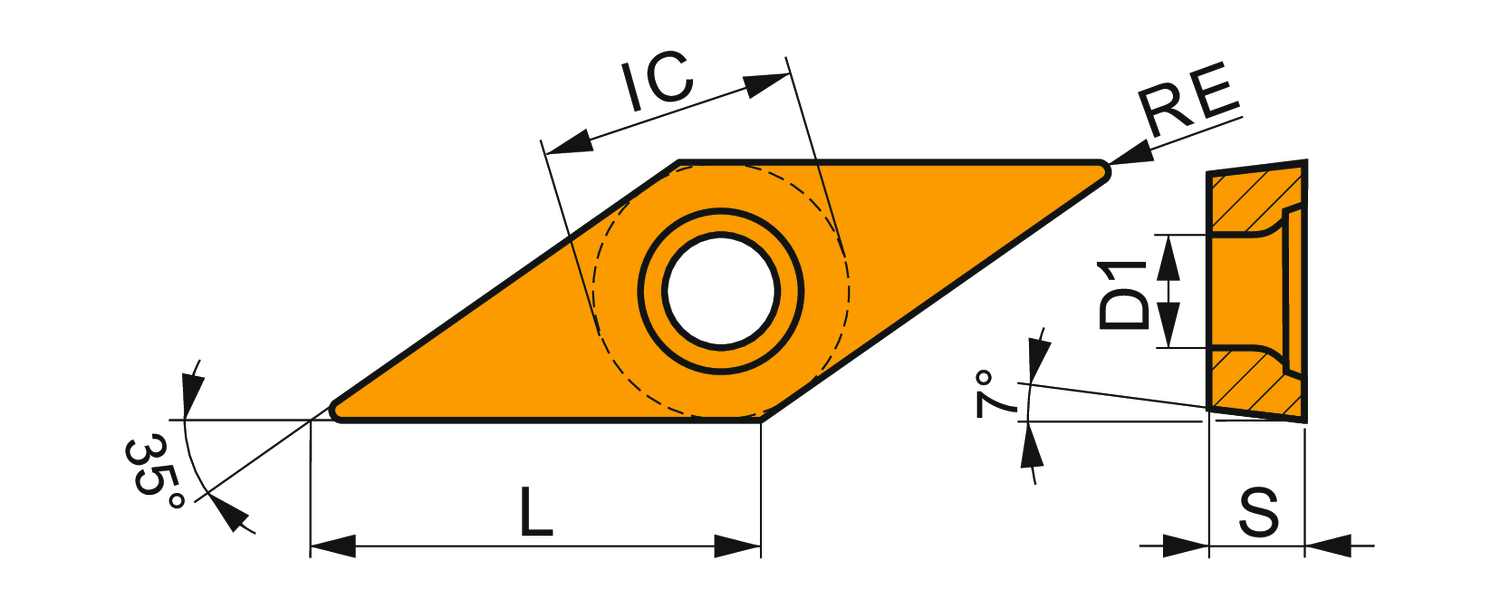

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 3.97mm, 2.38mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker FF2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to medium machining of steels

• Product Name ISO: VCGT 070202E-FF2:T8430
• Ordering Code ANSI: VCGT 1.21.50.5-FF2:T8430
• EDP Number: 7977270
• Coating: T8430
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
