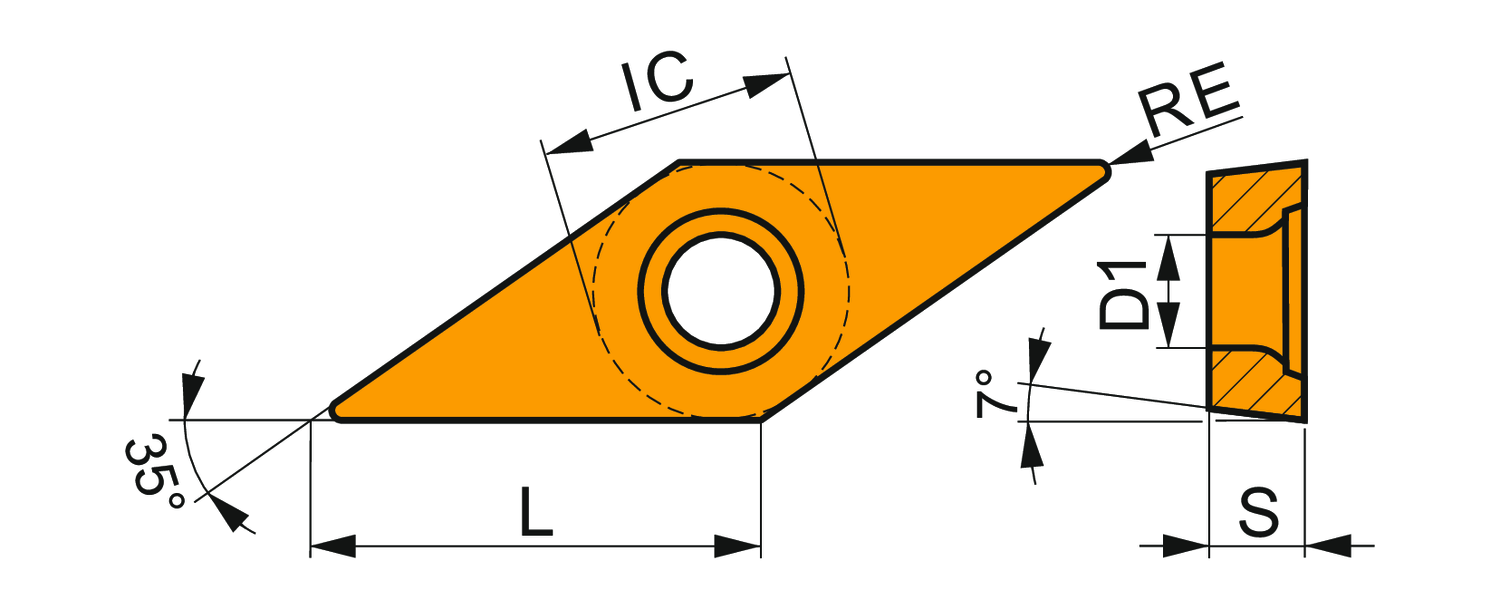

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker NF2, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide, for fine to medium machining
- Product Name ISO: VCGT 130304E-NF2:T9415
- Ordering Code ANSI: VCGT 2.521-NF2:T9415
- EDP Number: 8345985
- Coating: T9415
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 3.4 |
| Inscribing Circle Dia. (Mm.) | 7.94 |
| Insert Thickness (Mm.) | 3.18 |
| Insert Geometry | Positive |
| Coating | T9415 |
