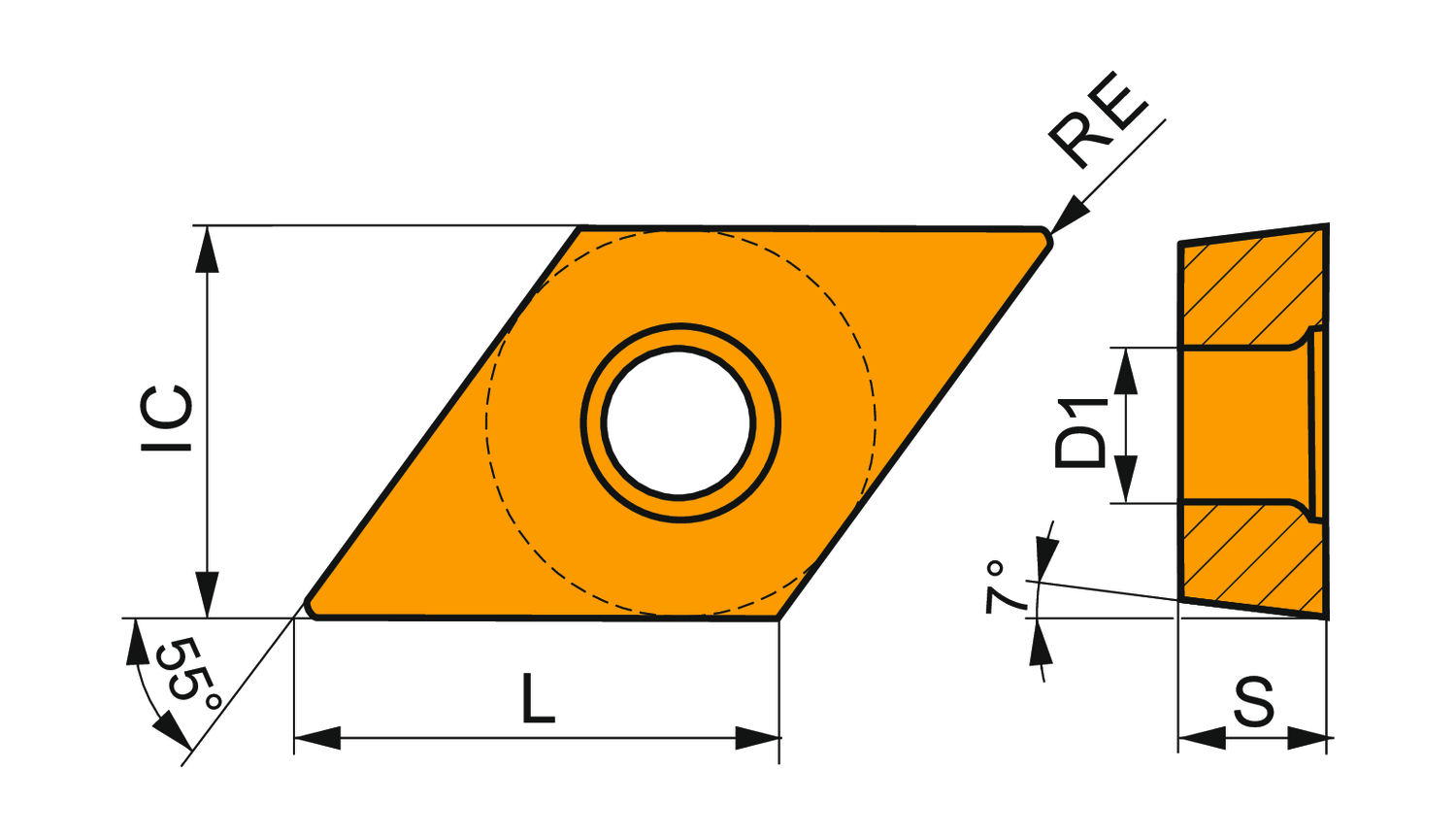

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/128" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker SF3, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO ranges M05 - M20 and N05 - N25, for fine to medium machining of stainless-steels and non-ferrous metals
- Product Name ISO: DCGT 070202E-SF3:T8315
- Ordering Code ANSI: DCGT 21.50.5-SF3:T8315
- EDP Number: 7168558
- Coating: T8315
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.6 |
| Corner Radius (Mm.) | 0.2 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.58 |
| Max Depth of Cut (In.) | 0.063 |
| Insert Geometry | Positive |
| Coating | T8315 |
