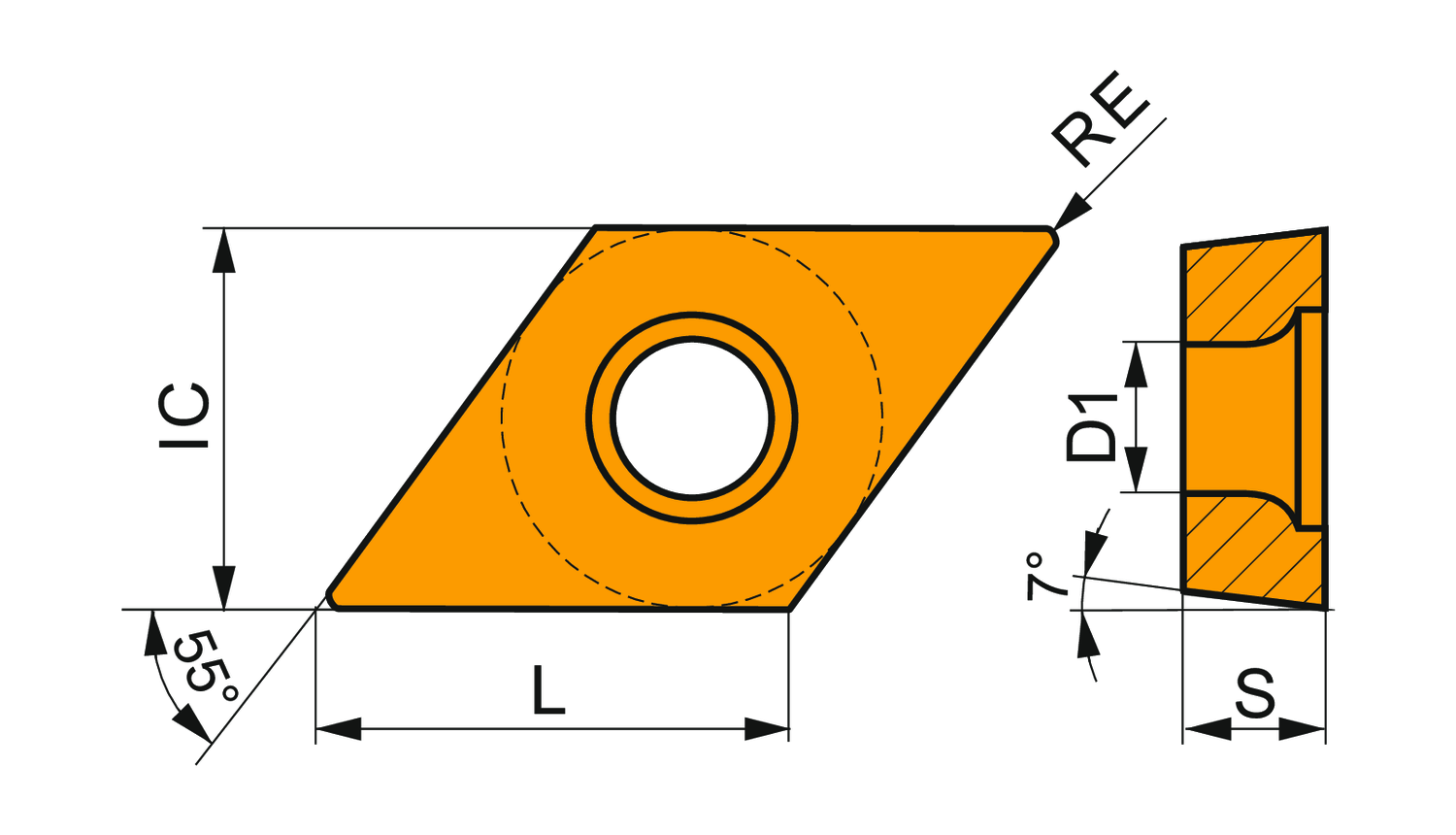

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker UR, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide, for fine to heavy machining
- Product Name ISO: DCMT 11T308E-UR:T7335
- Ordering Code ANSI: DCMT 32.52-UR:T7335
- EDP Number: 6754776
- Coating: T7335
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.079 |
| Insert Geometry | Positive |
| Coating | T7335 |
