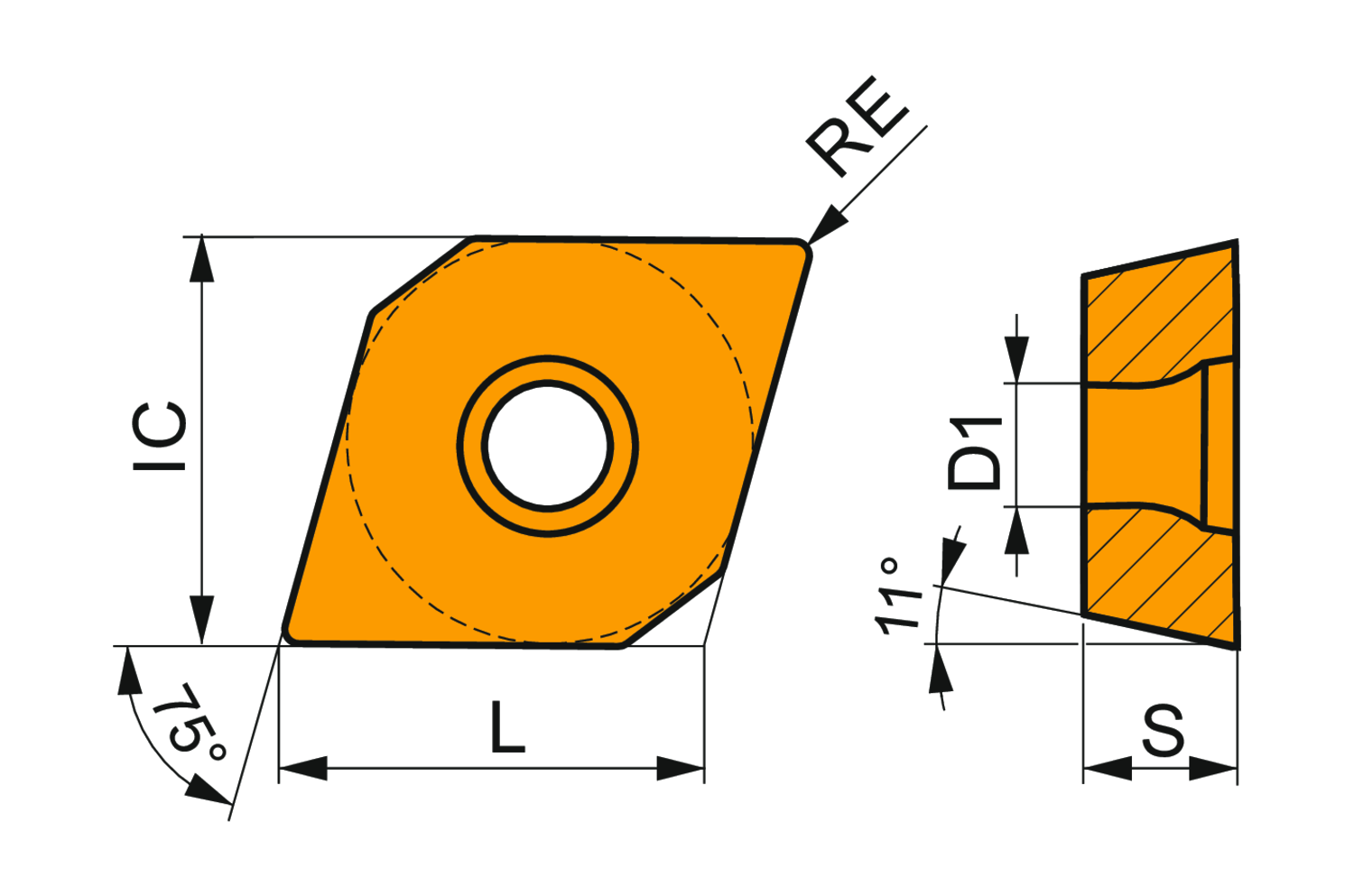

Single-sided positive turning insert, 75° rhomboid with 11° clearance, inscribed circle diameter of 7/32, 3/32" thick, 1/128" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NF2, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M20 - M40 and S15 - S25, for fine to medium machining of stainless-steels and super-alloys
- Product Name ISO: EPMT 050202E-NF2:T7335
- Ordering Code ANSI: EPMT 1.81.50.5-NF2:T7335
- EDP Number: 6755942
- Coating: T7335
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.5 |
| Corner Radius (Mm.) | 0.2 |
| Fixing Hole Diameter (Mm.) | 2.5 |
| Inscribing Circle Dia. (Mm.) | 5.56 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.098 |
| Insert Geometry | Positive |
| Coating | T7335 |
