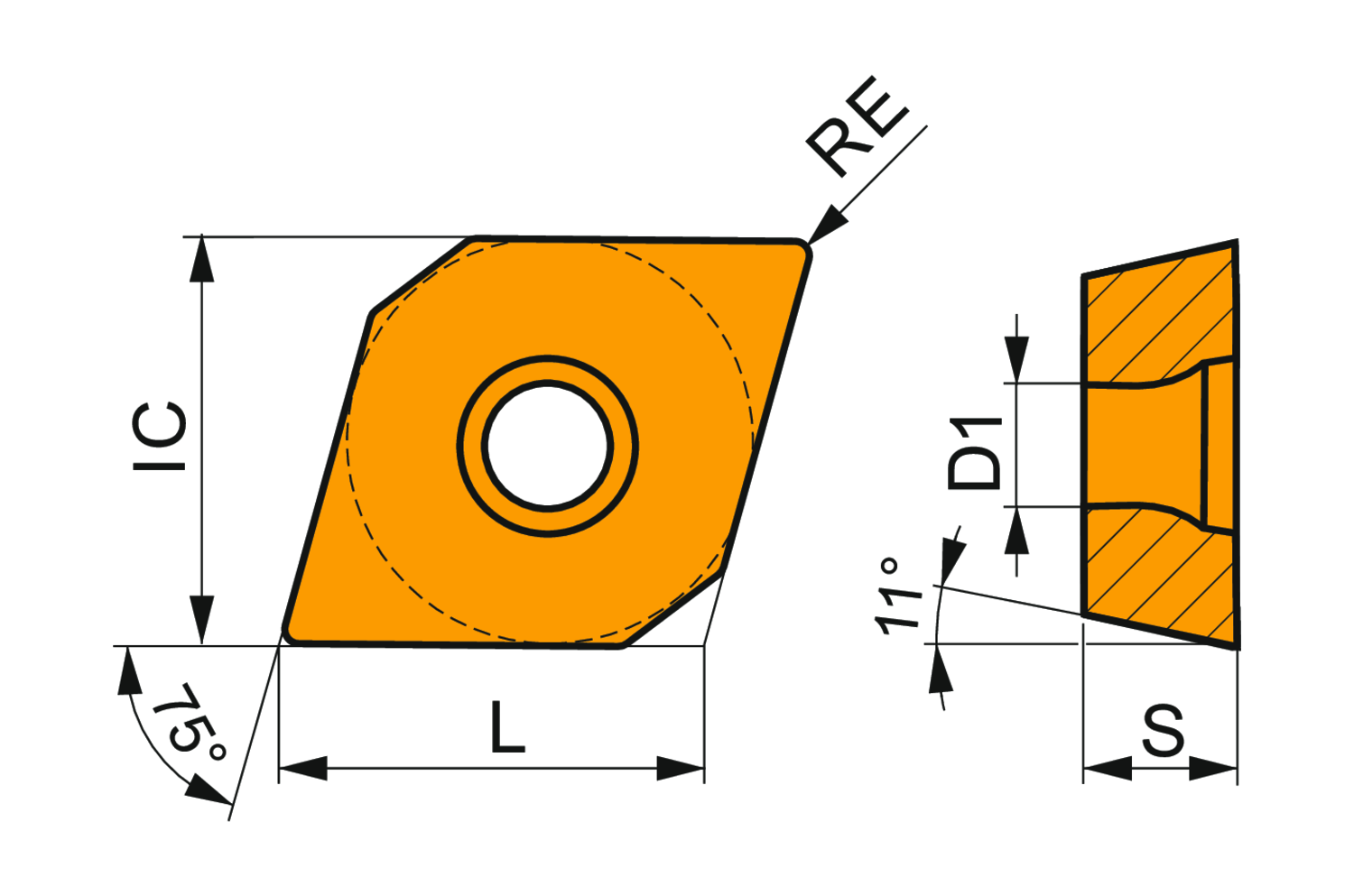

Single-sided positive turning insert, 75° rhomboid with 11° clearance, inscribed circle diameter of 7/32, 3/32" thick, 1/128" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NF2, in grade TT010, an uncoated cermet, for fine to medium machining
- Product Name ISO: EPMT 050202E-NF2:TT010
- Ordering Code ANSI: EPMT 1.81.50.5-NF2:TT010
- EDP Number: 6756302
- Coating: TT010
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.5 |
| Corner Radius (Mm.) | 0.2 |
| Fixing Hole Diameter (Mm.) | 2.5 |
| Inscribing Circle Dia. (Mm.) | 5.56 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.098 |
| Insert Geometry | Positive |
| Coating | TT010 |
