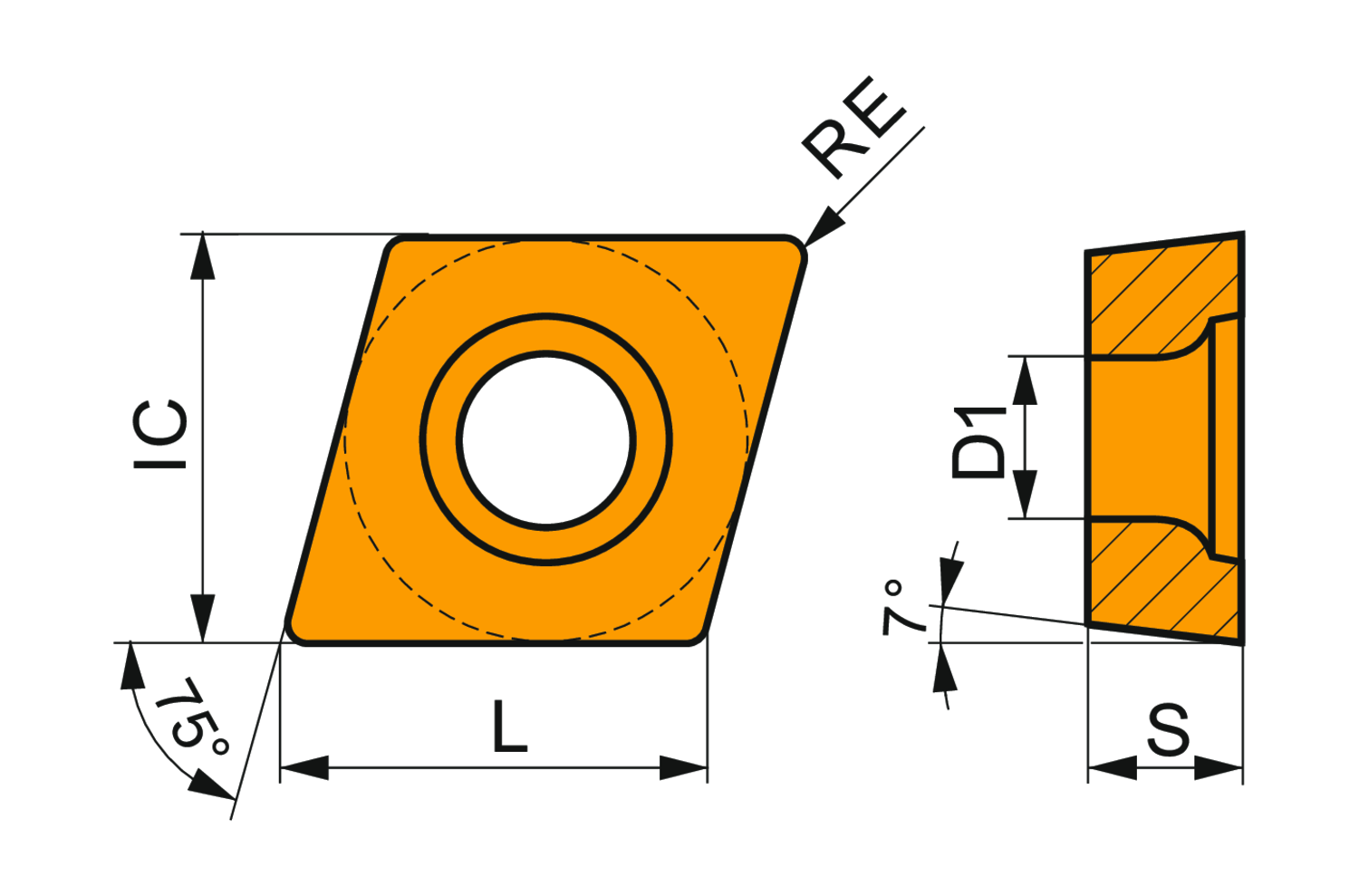

Single-sided positive turning insert, 75° rhomboid with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/128" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker SF2, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01-M15 and S01-S15, for fine to medium machining of stainless-steels and super-alloys
- Product Name ISO: ECGT 060202E-SF2:T6310
- Ordering Code ANSI: ECGT 21.50.5-SF2:T6310
- EDP Number: 7168199
- Coating: T6310
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.6 |
| Corner Radius (Mm.) | 0.2 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.063 |
| Insert Geometry | Positive |
| Coating | T6310 |
