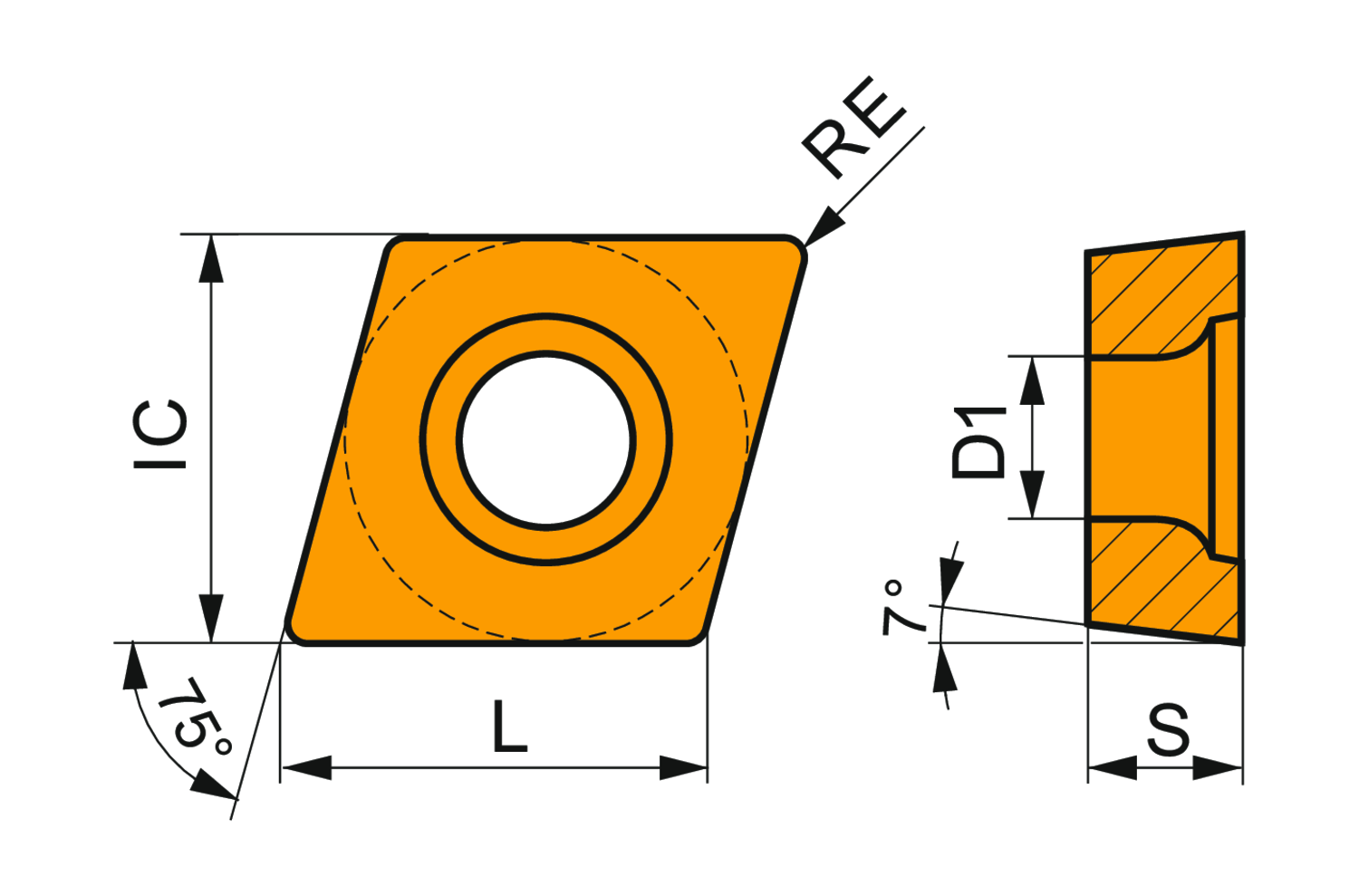

Single-sided positive turning insert, 75° rhomboid with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade H07, an uncoated WC-Co carbide within ISO range K10-K25, for fine to medium machining of cast-irons
- Product Name ISO: ECMW 060204:H07
- Ordering Code ANSI: ECMW 21.51:H07
- EDP Number: 7168663
- Coating: H07
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.2 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.165 |
| Insert Geometry | Positive |
| Coating | H07 |
