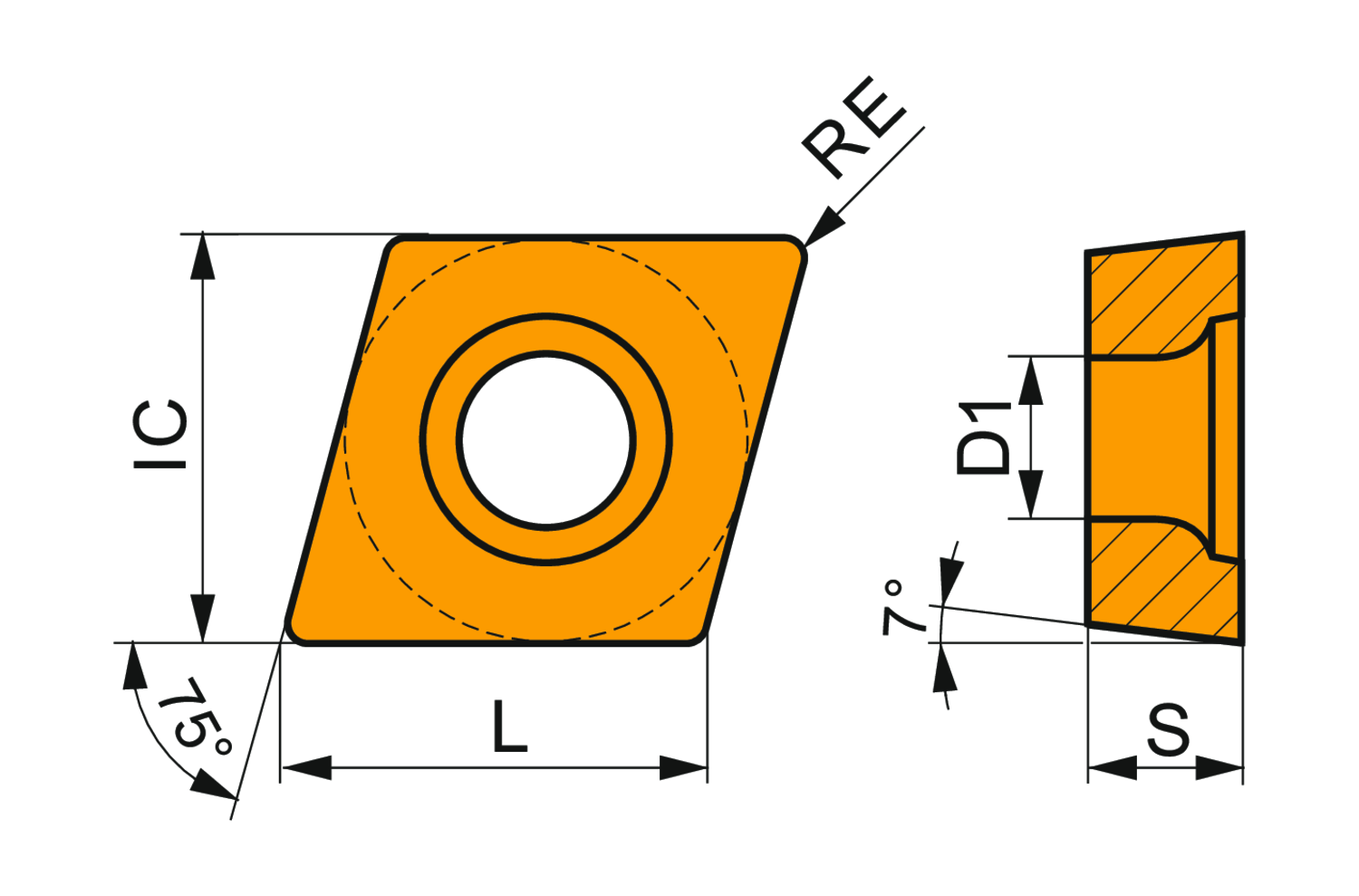

Single-sided positive turning insert, 75° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM2, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide, for fine to medium machining
- Product Name ISO: ECMT 080308E-FM2:T7325
- Ordering Code ANSI: ECMT 2.522-FM2:T7325
- EDP Number: 7156907
- Coating: T7325
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3.5 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 3.4 |
| Inscribing Circle Dia. (Mm.) | 7.94 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.138 |
| Insert Geometry | Positive |
| Coating | T7325 |
