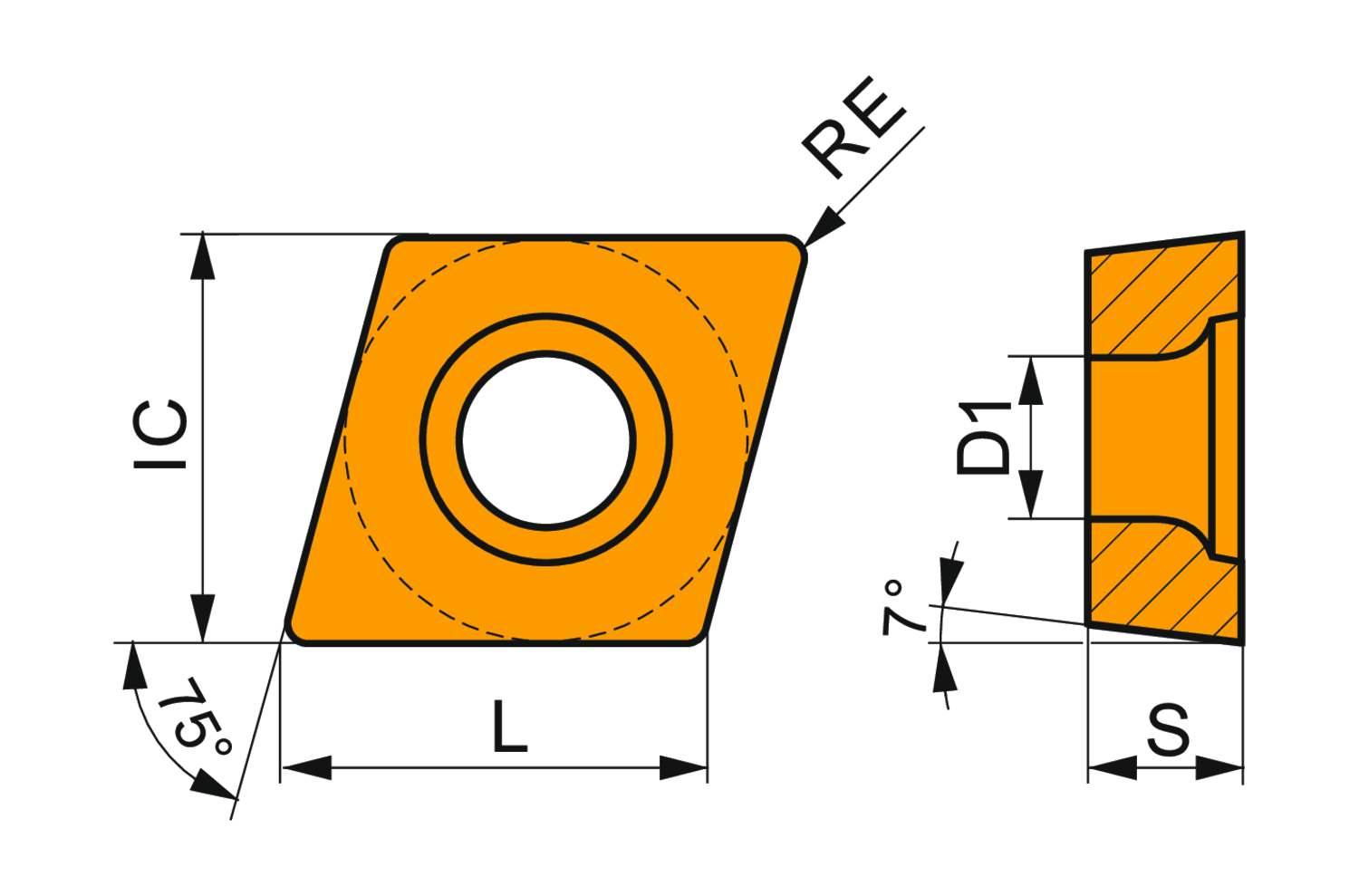

Single-sided positive turning insert, 75° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM2, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for fine to medium machining of steels
- Product Name ISO: ECMT 080304E-FM2:T9415
- Ordering Code ANSI: ECMT 2.521-FM2:T9415
- EDP Number: 8345945
- Coating: T9415
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 3.4 |
| Inscribing Circle Dia. (Mm.) | 7.94 |
| Insert Thickness (Mm.) | 3.18 |
| Insert Geometry | Positive |
| Coating | T9415 |
