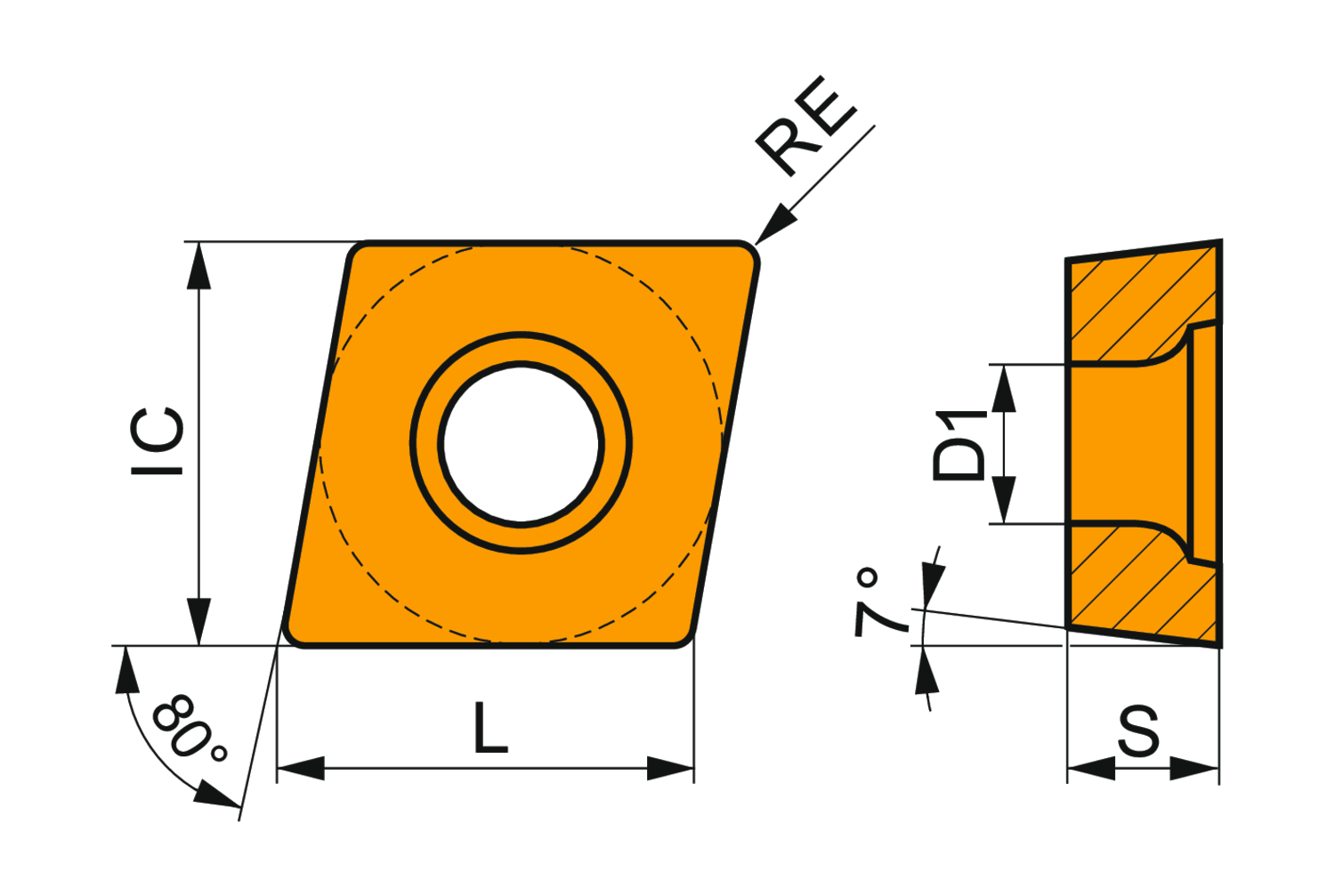

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker SF3, in grade H07, an uncoated WC-Co carbide within ISO ranges N10 - N30 and S01 - S20, for fine to medium machining of non-ferrous metals and super-alloys
- Product Name ISO: CCGT 120408E-SF3:H07
- Ordering Code ANSI: CCGT 432-SF3:H07
- EDP Number: 7168553
- Coating: H07
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 5.01 |
| Max Depth of Cut (In.) | 0.157 |
| Insert Geometry | Positive |
| Coating | H07 |
