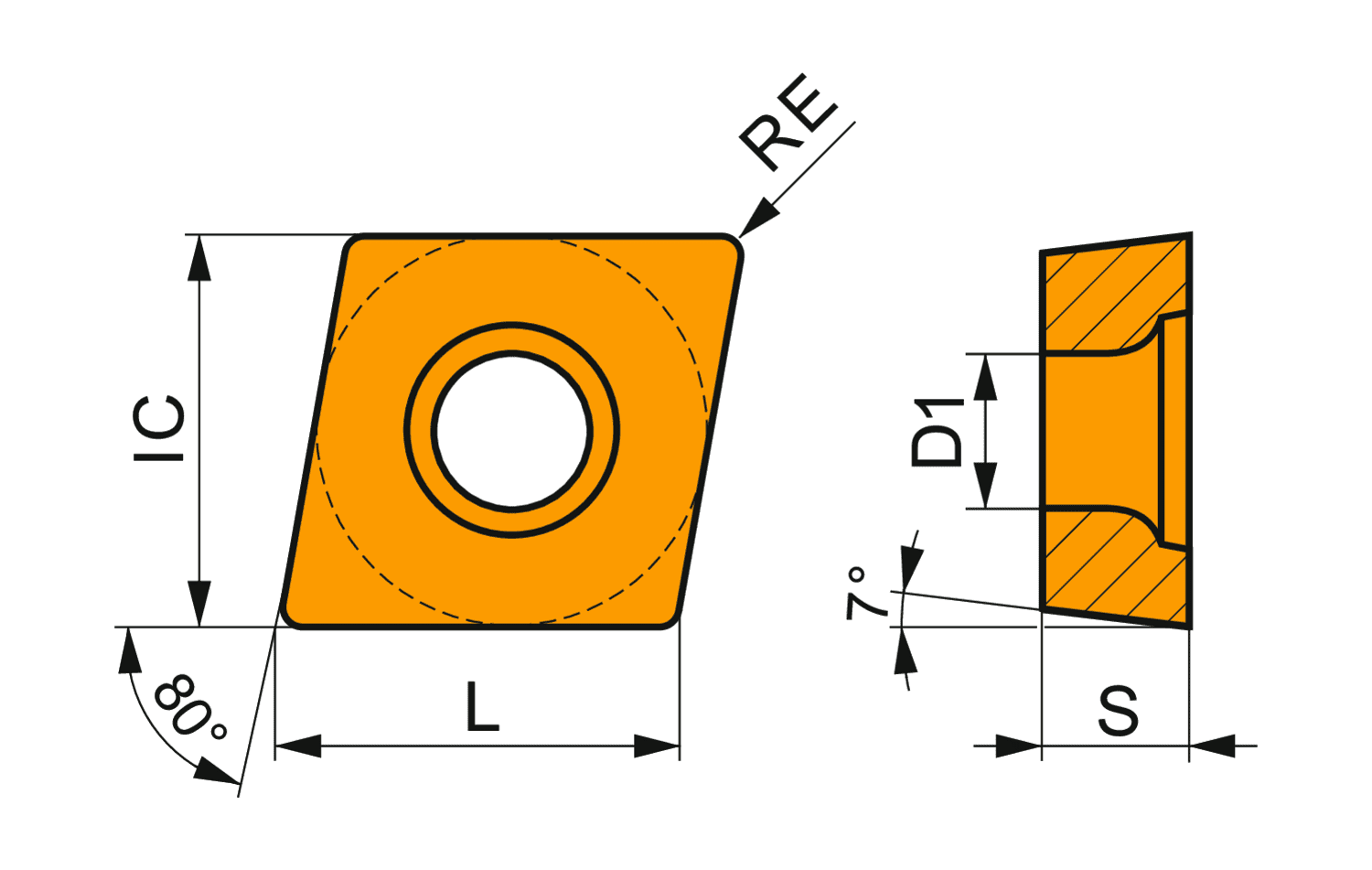

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01-K15, for fine to medium machining of cast-irons
- Product Name ISO: CCMW 060204:T5305
- Ordering Code ANSI: CCMW 21.51:T5305
- EDP Number: 6755719
- Coating: T5305
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.2 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.165 |
| Insert Geometry | Positive |
| Coating | T5305 |
