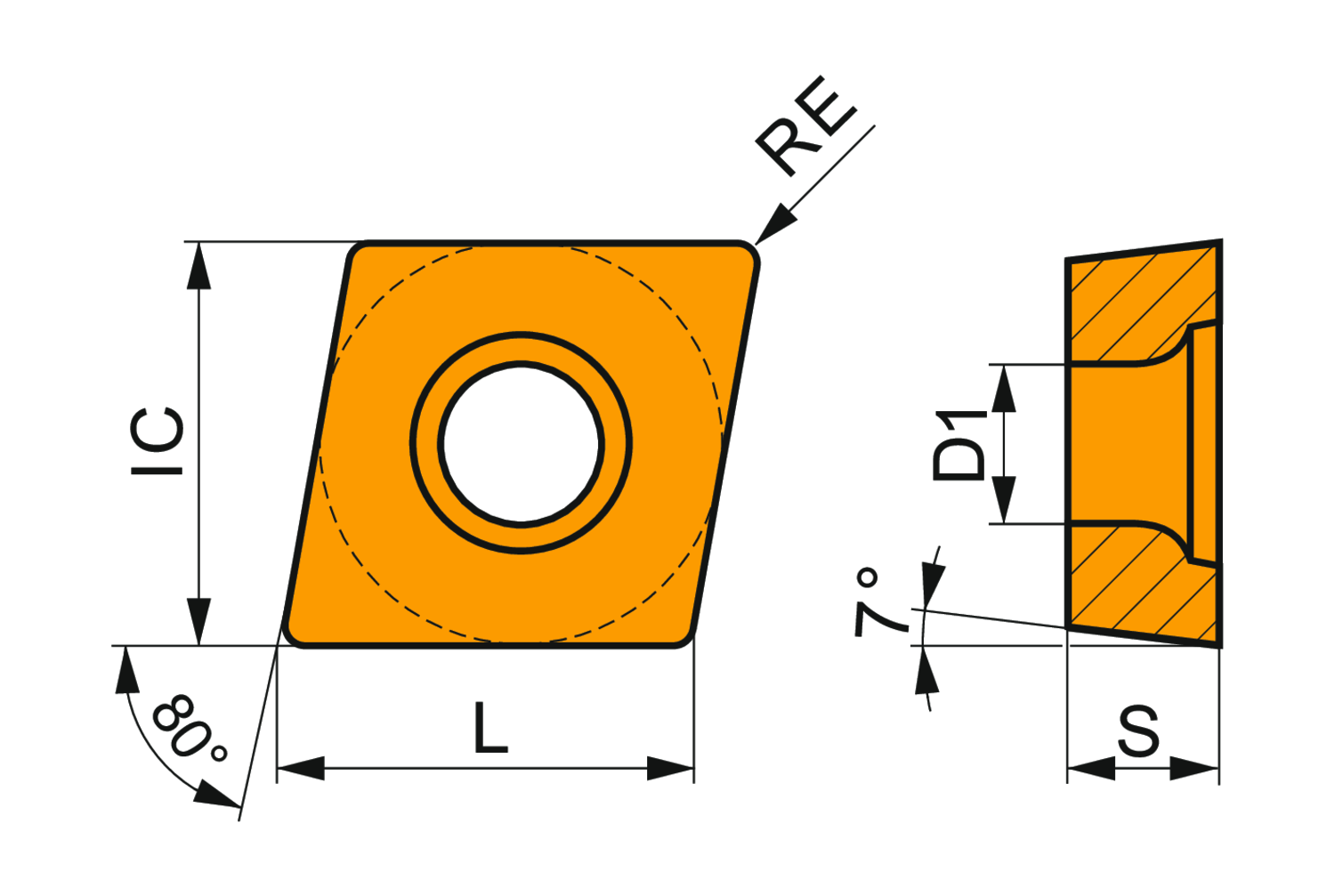

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker SI, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO range M05-M20, for fine to medium machining of stainless-steels with a right handed turning tool
- Product Name ISO: CCGT 09T304ER-SI:T8315
- Ordering Code ANSI: CCGT 32.51R-SI:T8315
- EDP Number: 6922721
- Coating: T8315
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.079 |
| Insert Geometry | Positive |
| Coating | T8315 |
