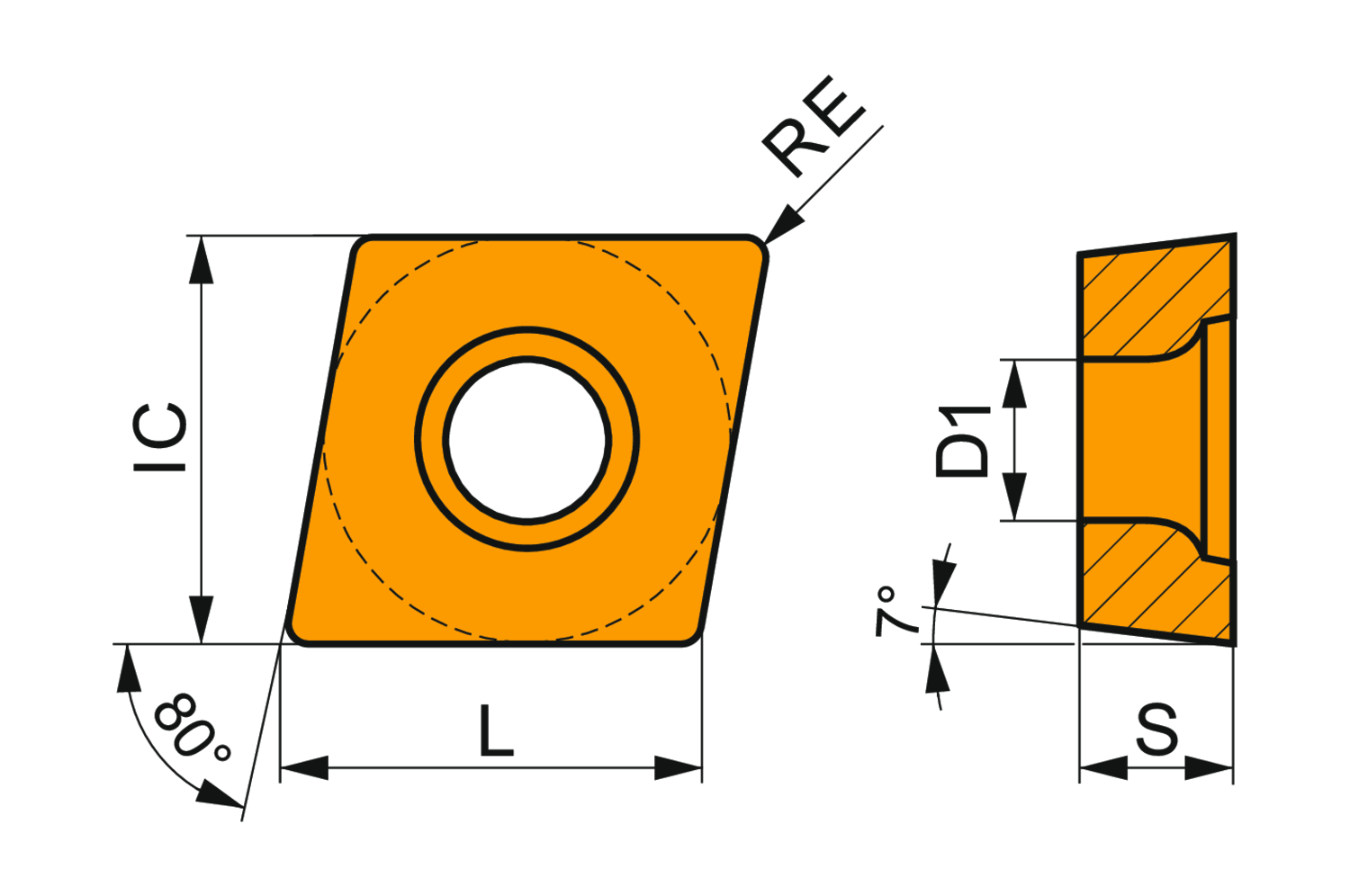

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to heavy machining of steels

• Product Name ISO: CCMT 060208E-UR:T8430
• Ordering Code ANSI: CCMT 21.52-UR:T8430
• EDP Number: 7973812
• Coating: T8430
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
