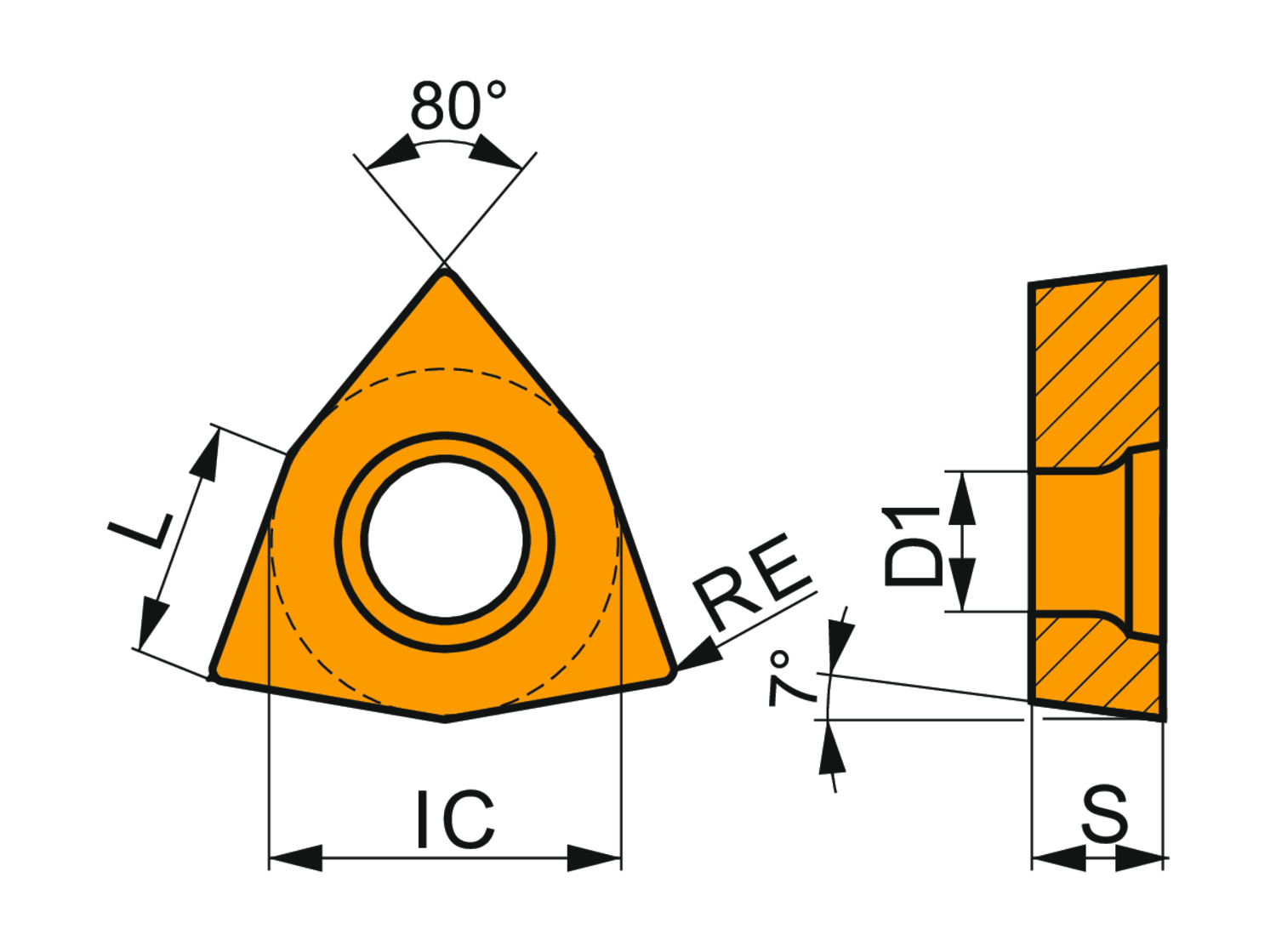

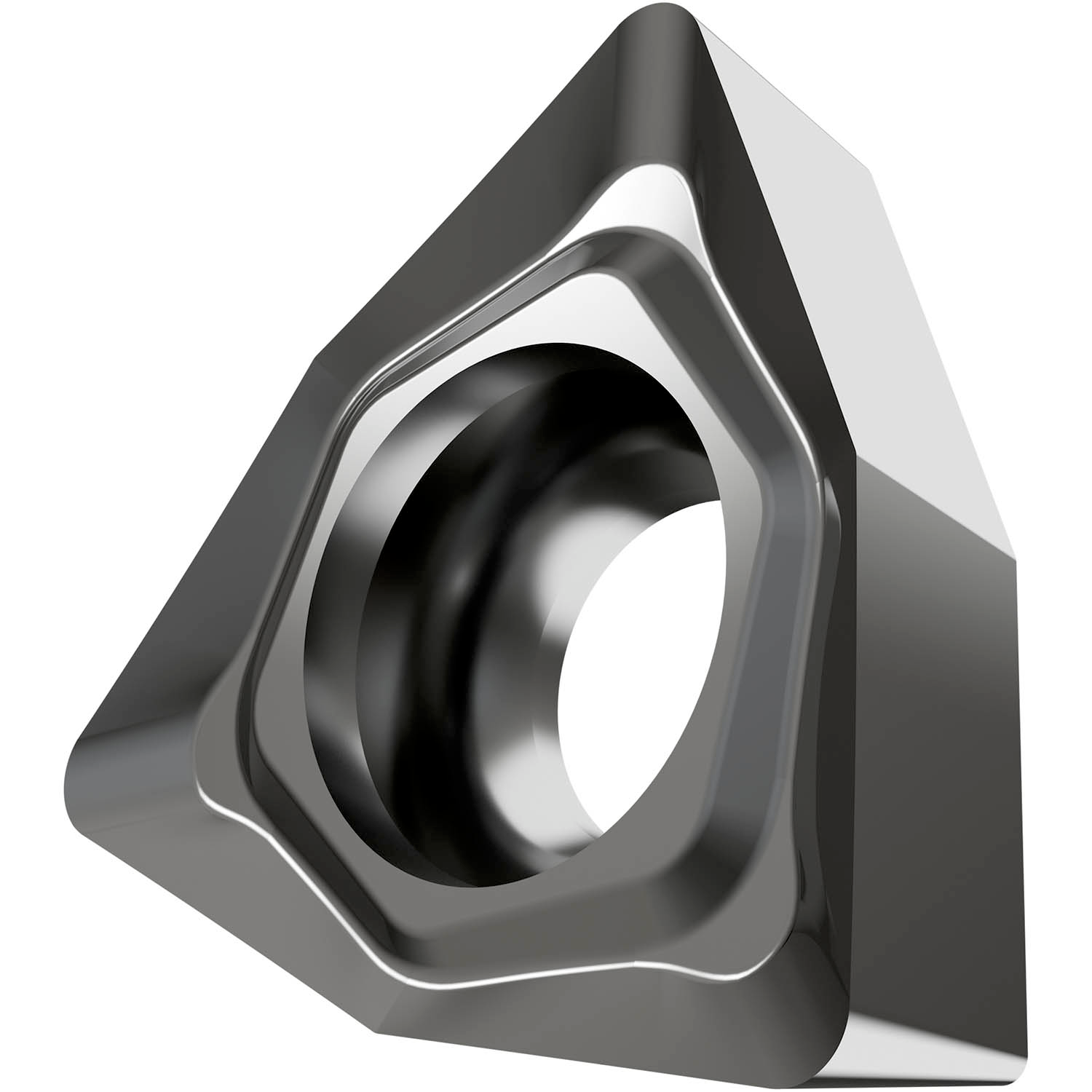

Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 1/2", 3/16" thick, 3/64" nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker AL with sharp cutting edges, in grade HF7, an uncoated fine grained WC-Co carbide within ISO range N10-N25, for fine to heavy machining of non-ferrous metals
- Product Name ISO: WCGT 080412F-AL:HF7
- Ordering Code ANSI: WCGT 433F-AL:HF7
- EDP Number: 6752407
- Coating: HF7
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5.6 |
| Corner Radius (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.22 |
| Insert Geometry | Positive |
| Coating | HF7 |
