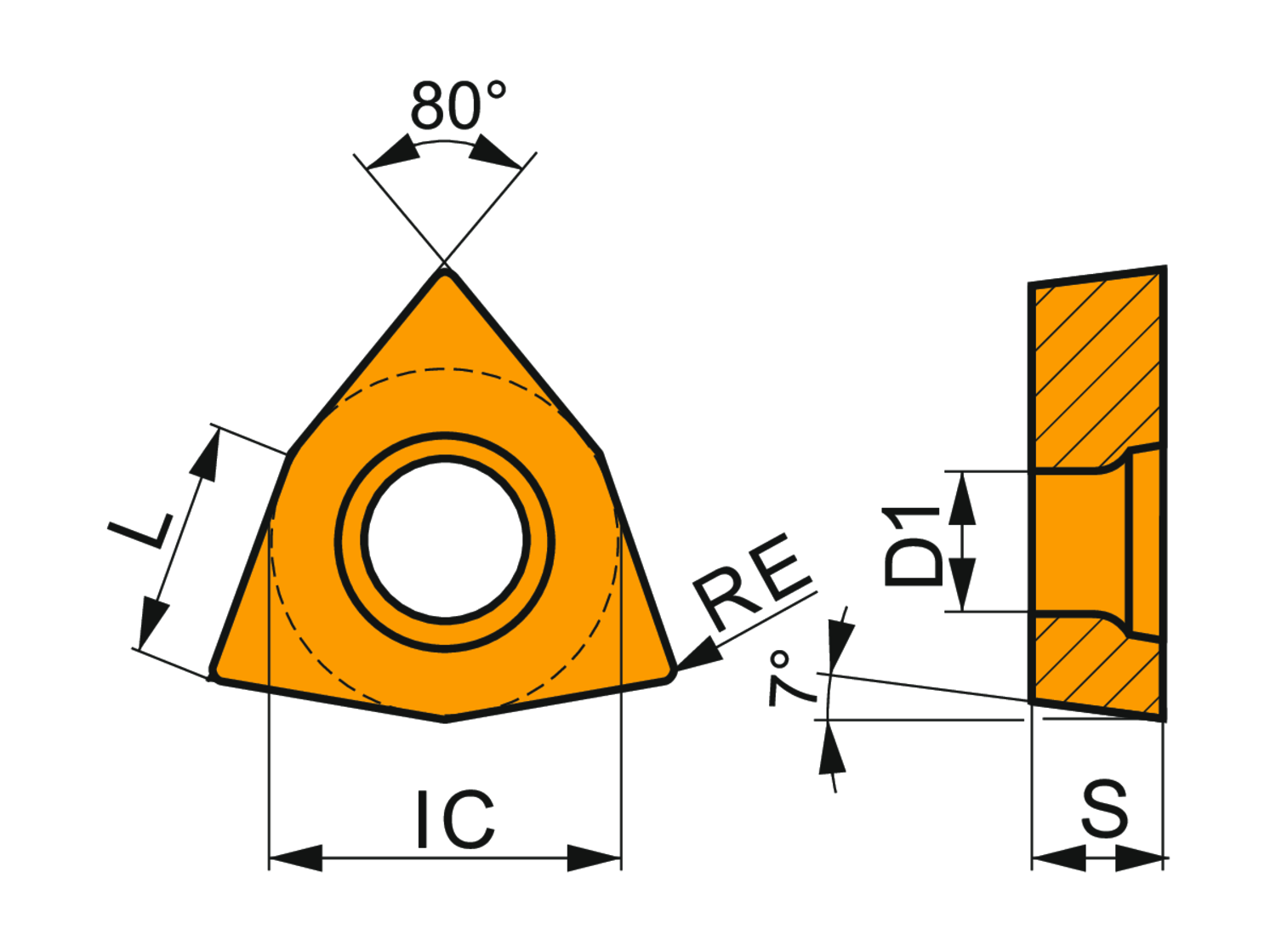

Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 1/2", 3/16" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RF, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide, for fine to heavy machining
- Product Name ISO: WCMT 080412E-RF:T7335
- Ordering Code ANSI: WCMT 433-RF:T7335
- EDP Number: 6756047
- Coating: T7335
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5.6 |
| Corner Radius (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.22 |
| Insert Geometry | Positive |
| Coating | T7335 |
