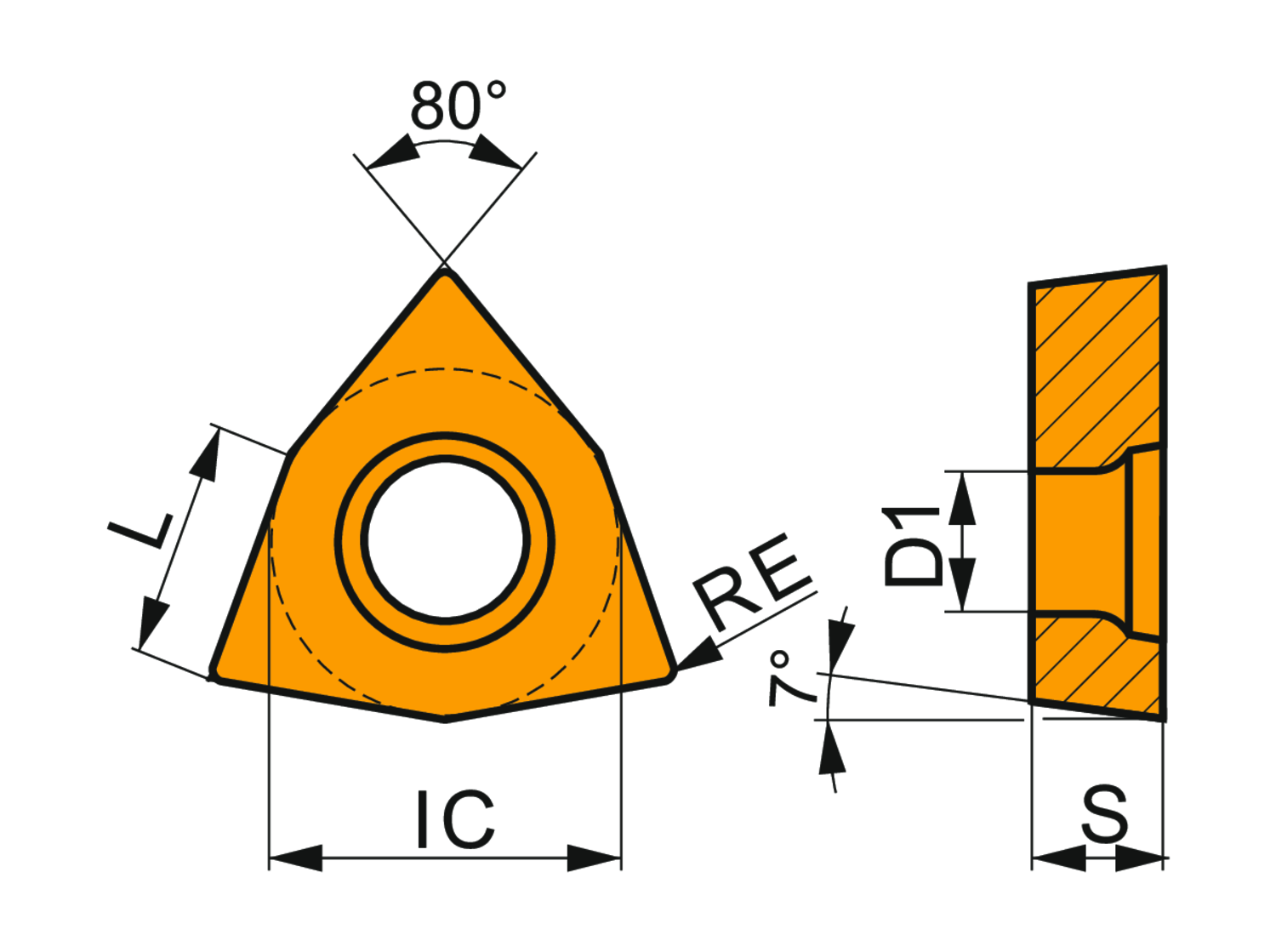

Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 3.97mm, 1.59mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker FF2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to medium machining of steels
- Product Name ISO: WCGT 020104E-FF2:T8430
- Ordering Code ANSI: WCGT 1.211-FF2:T8430
- EDP Number: 7977278
- Coating: T8430
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.2 |
| Inscribing Circle Dia. (Mm.) | 3.97 |
| Insert Thickness (Mm.) | 1.59 |
| Insert Geometry | Positive |
| Coating | T8430 |
