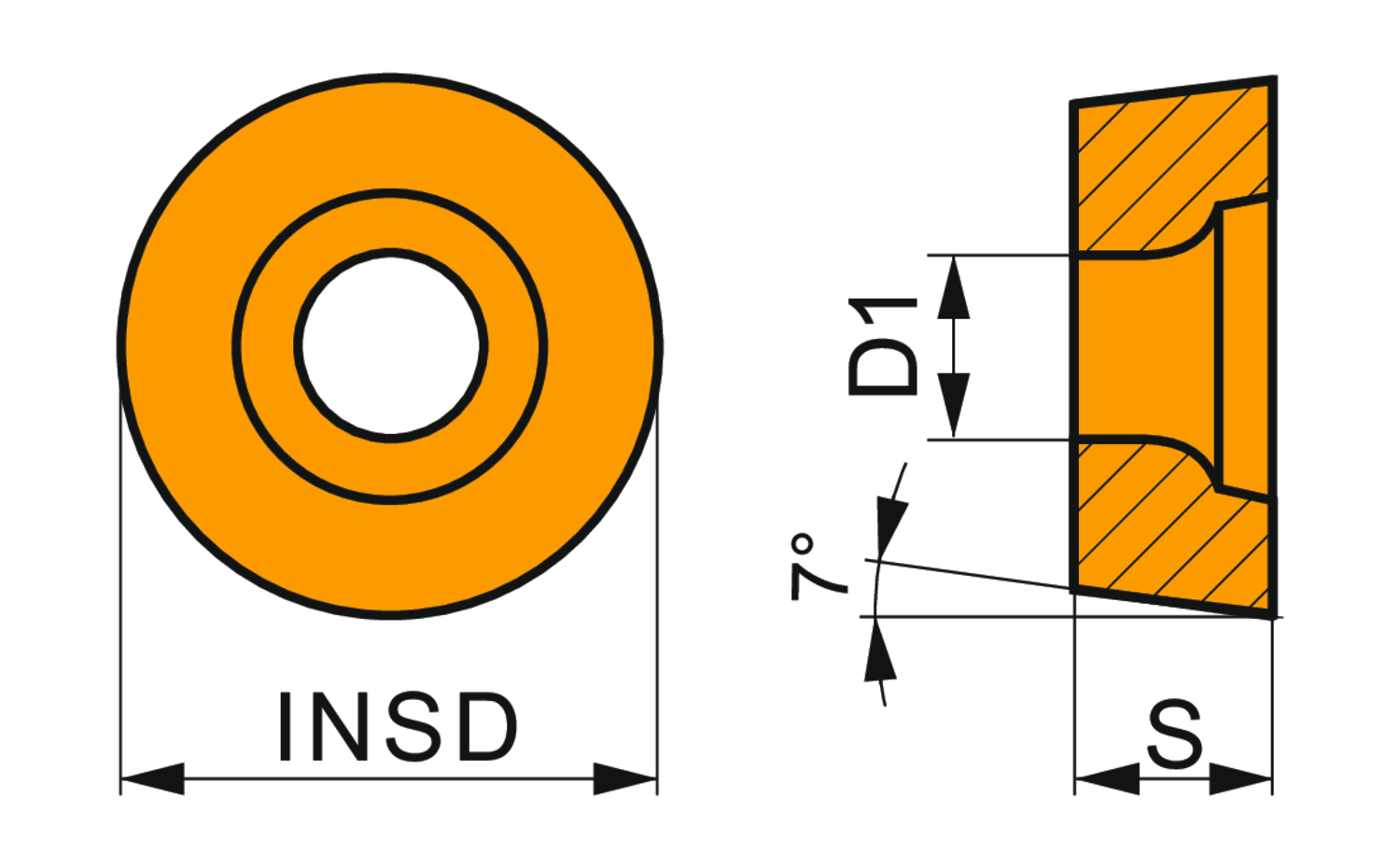

Single-sided positive turning insert, round with 7° clearance, a diameter of 10mm, 3.18mm thick, indexing accuracy according to ISO-tolerance class-G, chip-breaker AL with sharp cutting edges, in grade T0315, a PVD coated fine grained WC-Co carbide within ISO range N05-N30, for fine to heavy machining of non-ferrous metals
- Product Name ISO: RCGT 1003MOF-AL:T0315
- Ordering Code ANSI: RCGT 1003MOF-AL:T0315
- EDP Number: 6756151
- Coating: T0315
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Insert Dia. (Mm.) | 10 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.157 |
| Insert Geometry | Positive |
| Coating | T0315 |
