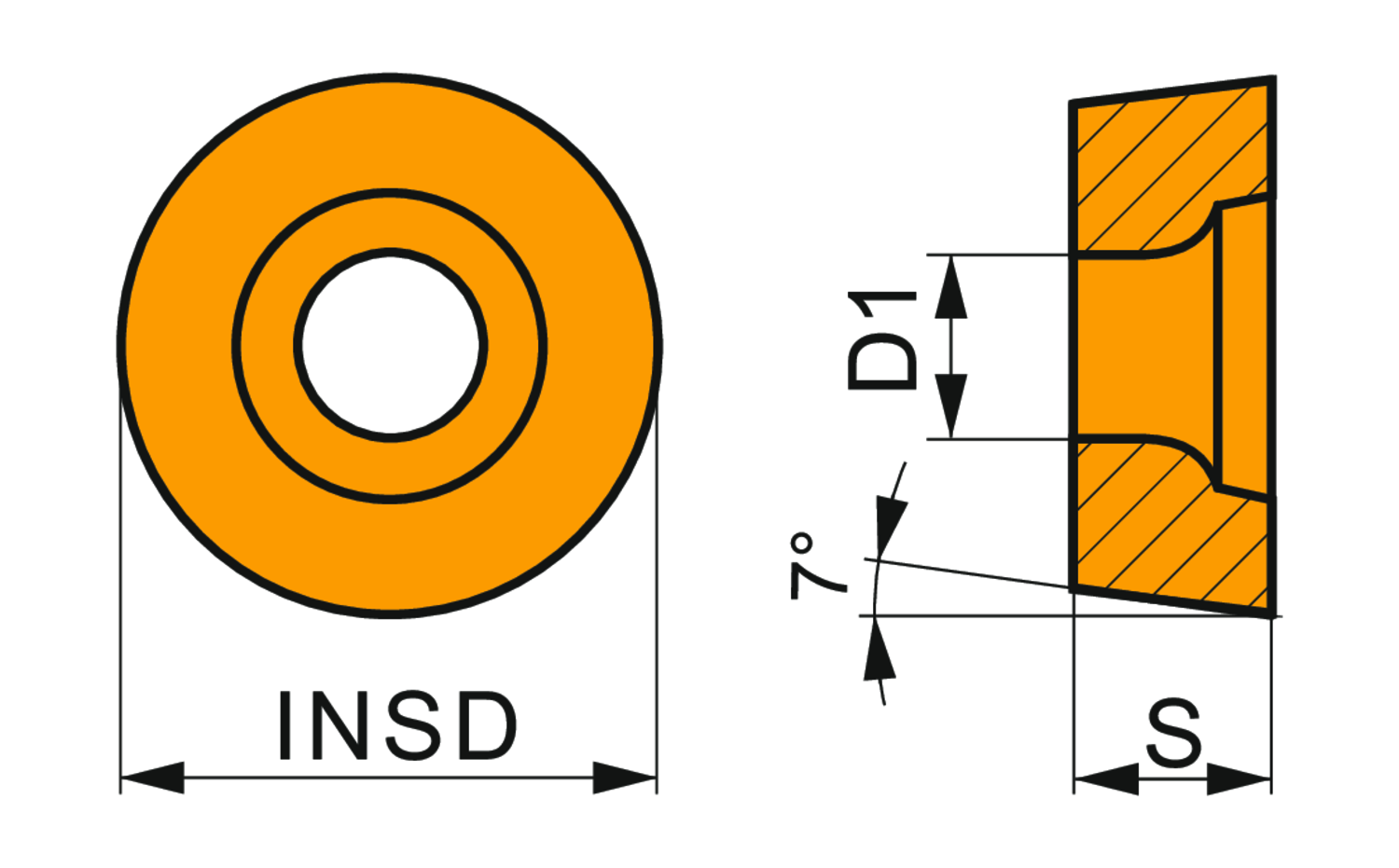

Single-sided positive turning insert, round with 7° clearance, a diameter of 12mm, 4.76mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO range M01-M15, for fine to heavy machining of stainless-steels
- Product Name ISO: RCMT 1204MOE-UR:T6310
- Ordering Code ANSI: RCMT 1204MOE-UR:T6310
- EDP Number: 7168662
- Coating: T6310
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.8 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Insert Dia. (Mm.) | 12 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.189 |
| Coating | T6310 |
