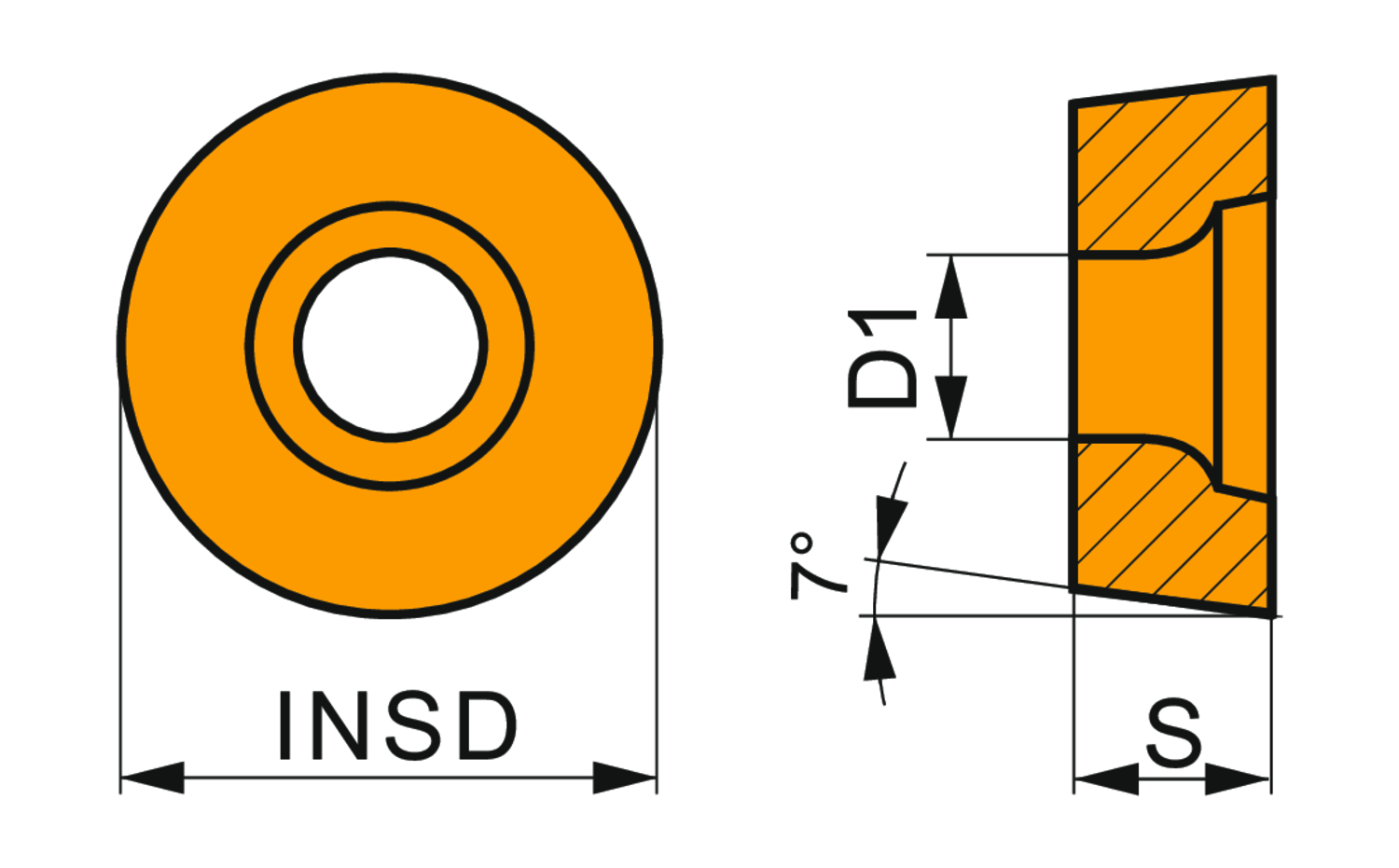

Single-sided positive turning insert, round with 7° clearance, a diameter of 8mm, 3.18mm thick, indexing accuracy according to ISO-tolerance class-M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine machining of cast-irons
- Product Name ISO: RCMW 0803MO:T5315
- Ordering Code ANSI: RCMW 0803MO:T5315
- EDP Number: 6922816
- Coating: T5315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Fixing Hole Diameter (Mm.) | 3.4 |
| Insert Dia. (Mm.) | 8 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.079 |
| Insert Geometry | Positive |
| Coating | T5315 |
