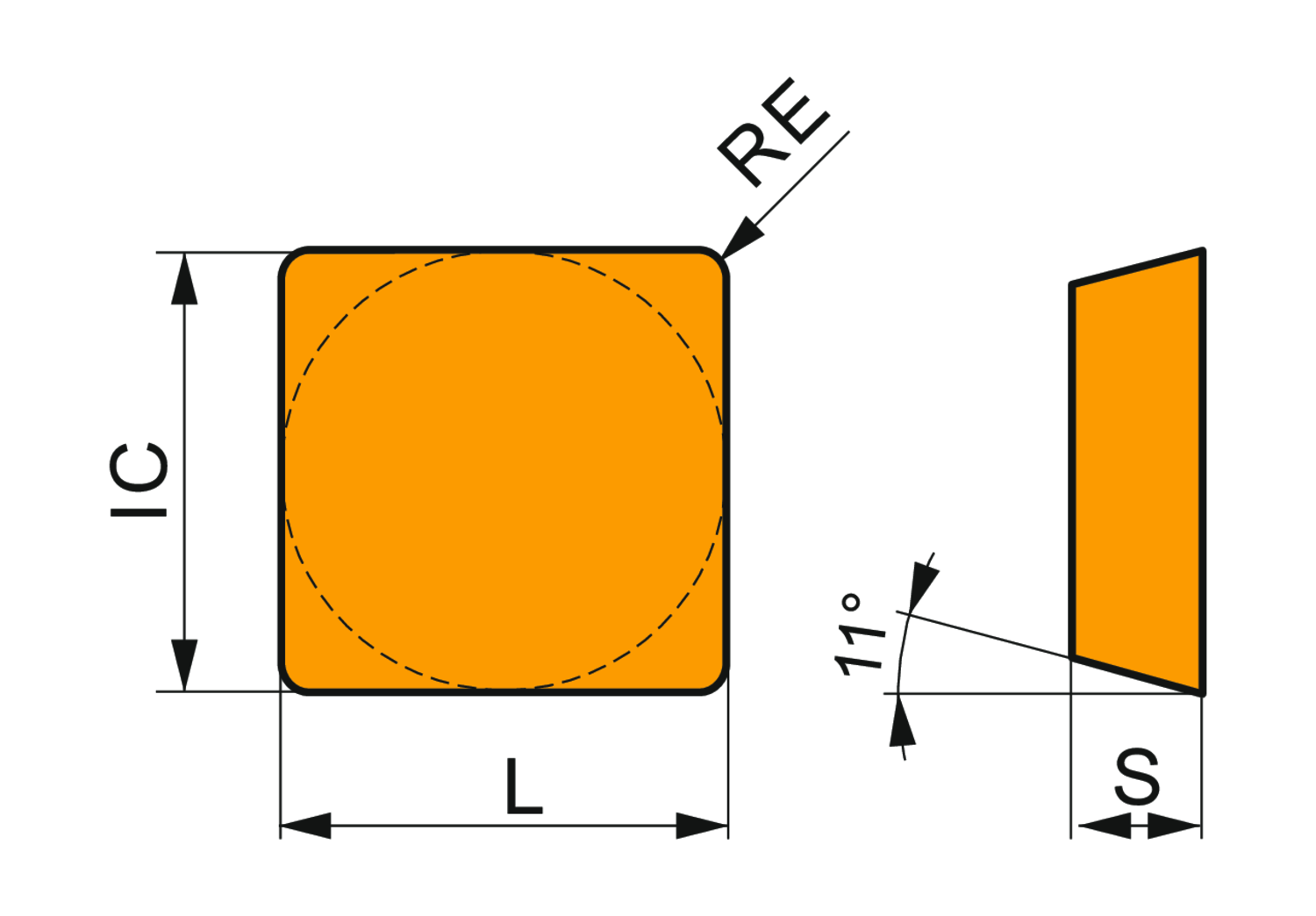

Single-sided positive turning insert, square with 11° clearance, inscribed circle diameter of 1/2", 1/8" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker 48, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 - P35, for medium to heavy machining of steels
- Product Name ISO: SPMR 120304E-48:T9325
- Ordering Code ANSI: SPMR 421-48:T9325
- EDP Number: 6754161
- Coating: T9325
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 8 |
| Corner Radius (Mm.) | 0.4 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.315 |
| Insert Geometry | Positive |
| Coating | T9325 |
