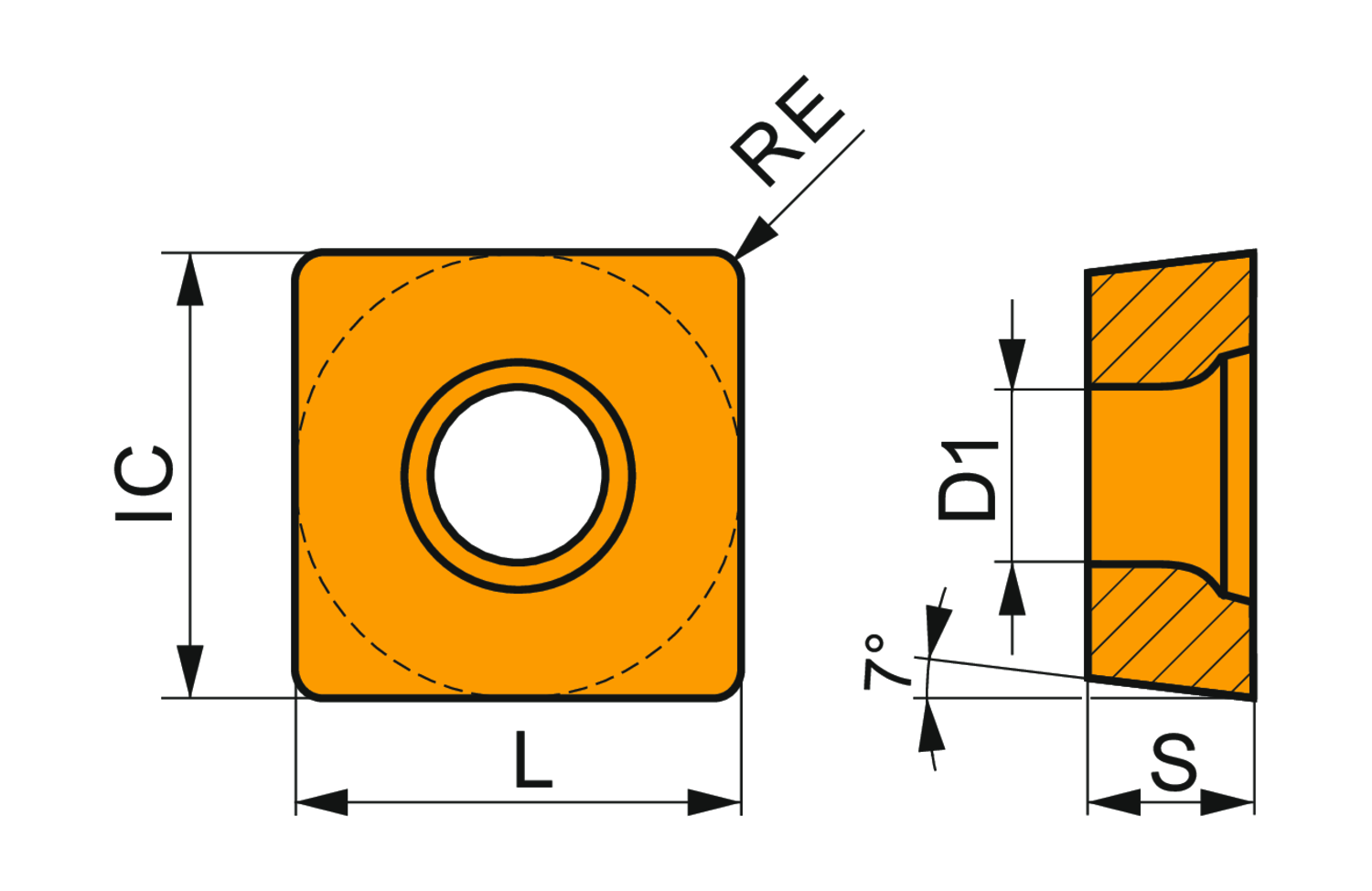

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 1.1/2", 3/8" thick, 1/8" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker OR, in grade 6635, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P20-P40 and M15-M35, for heavy to extra heavy machining of steels and stainless-steels
- Product Name ISO: SCMT 380932E-OR:6635
- Ordering Code ANSI: SCMT 1268-OR:6635
- EDP Number: 6752234
- Coating: 6635
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 24 |
| Corner Radius (Mm.) | 3.2 |
| Fixing Hole Diameter (Mm.) | 8.7 |
| Inscribing Circle Dia. (Mm.) | 38.1 |
| Insert Thickness (Mm.) | 9.525 |
| Max Depth of Cut (In.) | 0.945 |
| Insert Geometry | Positive |
| Coating | 6635 |
