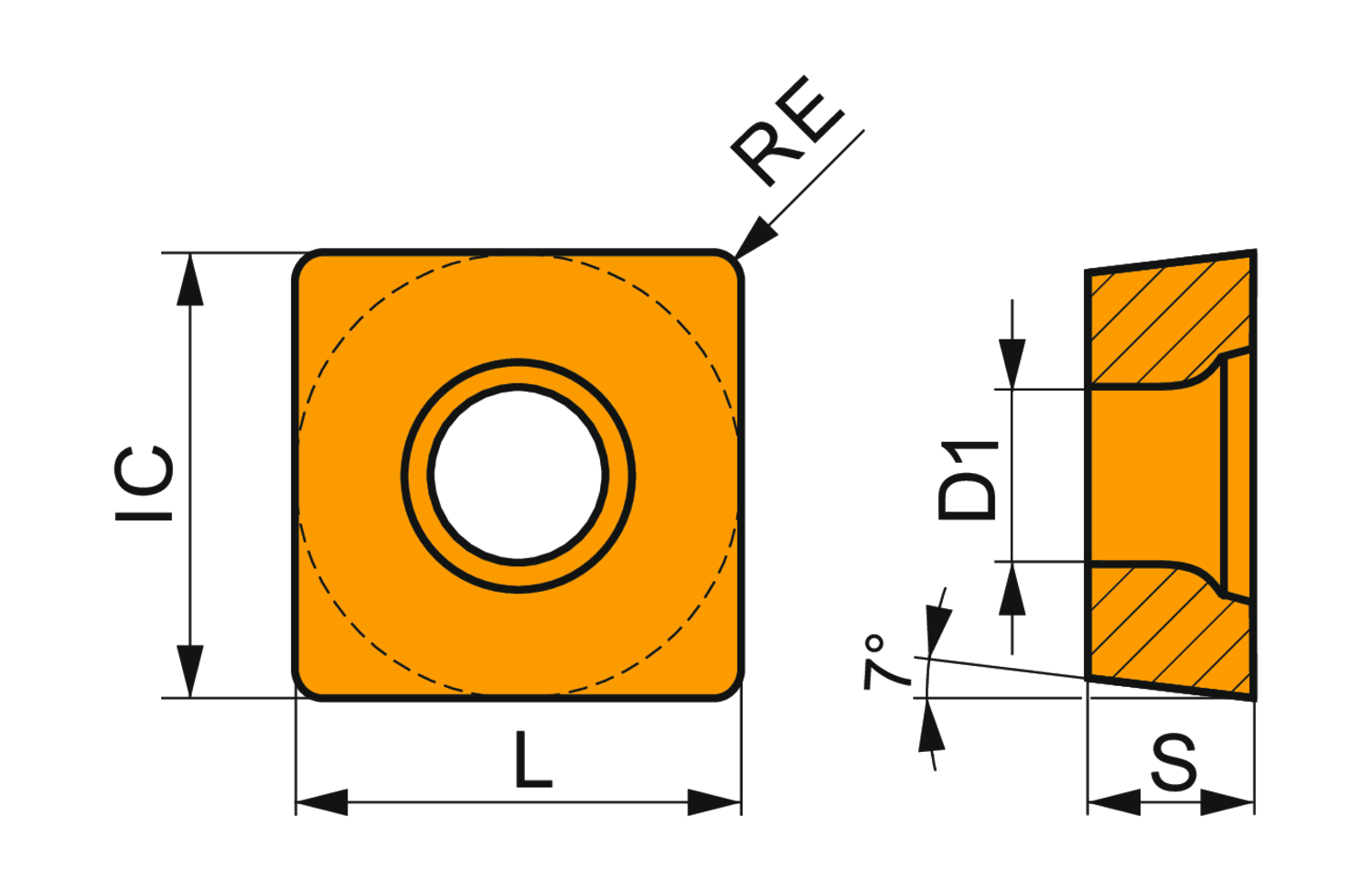

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 1.1/2", 3/8" thick, 1/8" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker OR, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05-P25, for heavy to extra heavy machining of steels
- Product Name ISO: SCMT 380932E-OR:T9315
- Ordering Code ANSI: SCMT 1268-OR:T9315
- EDP Number: 6933566
- Coating: T9315
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 24 |
| Corner Radius (Mm.) | 3.2 |
| Fixing Hole Diameter (Mm.) | 8.7 |
| Inscribing Circle Dia. (Mm.) | 38.1 |
| Insert Thickness (Mm.) | 9.525 |
| Max Depth of Cut (In.) | 0.945 |
| Insert Geometry | Positive |
| Coating | T9315 |
